RFID Fixed Asset Management System

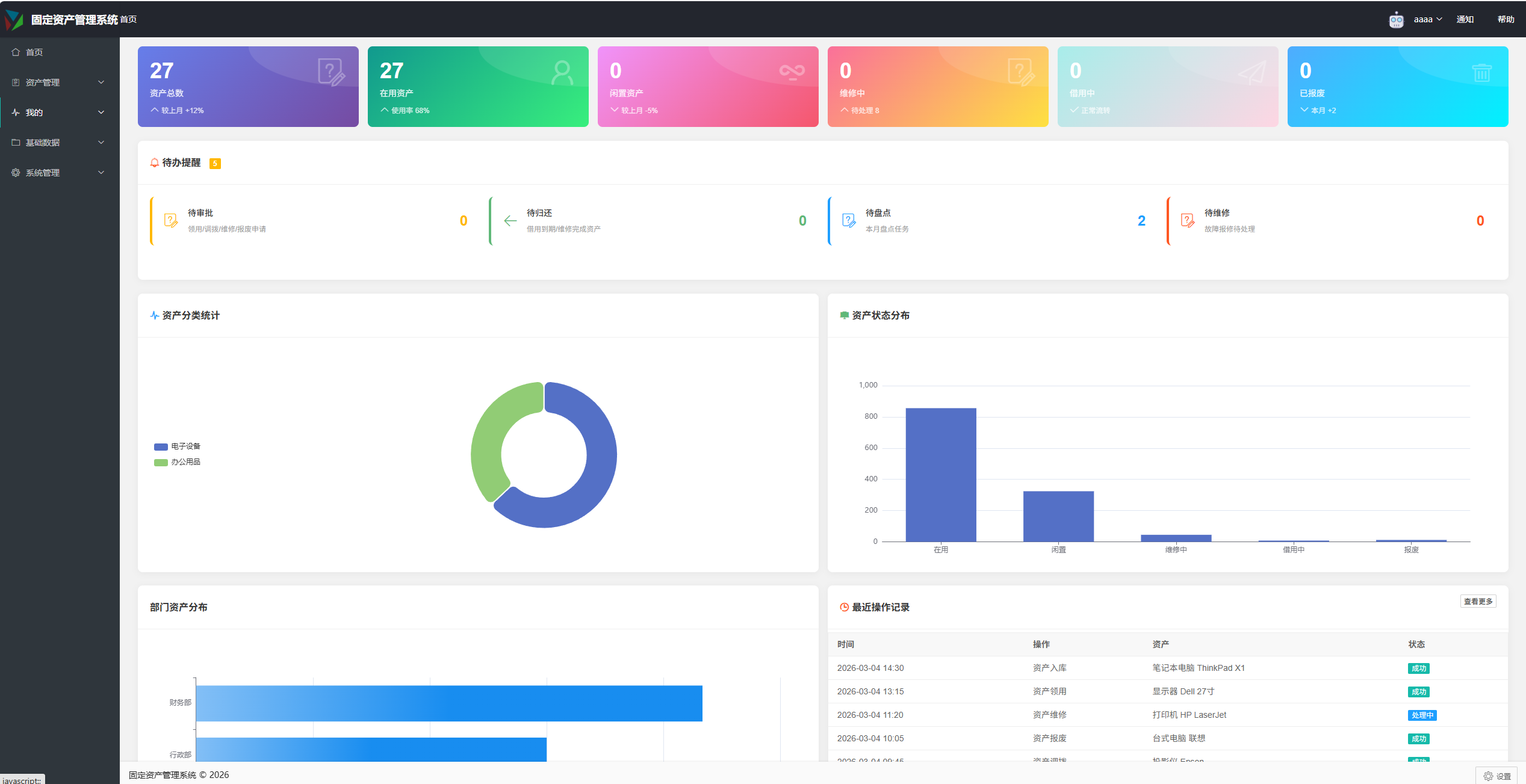

RFID Fixed Asset Management System
Version: V1.0.0.1
Function Description:
- It covers core business functions including asset addition, asset borrowing, asset maintenance, asset scrapping, asset transfer, and asset inventory.
- Approval processes of main business workflows are customizable.
- Fully compatible with our company's RFID intelligent devices.
- Customizable and supports on-premises deployment.
System Link: Click to connect
Account and Password: Please contact customer service, or enter the keyword Fixed Asset in the customer service input box below.

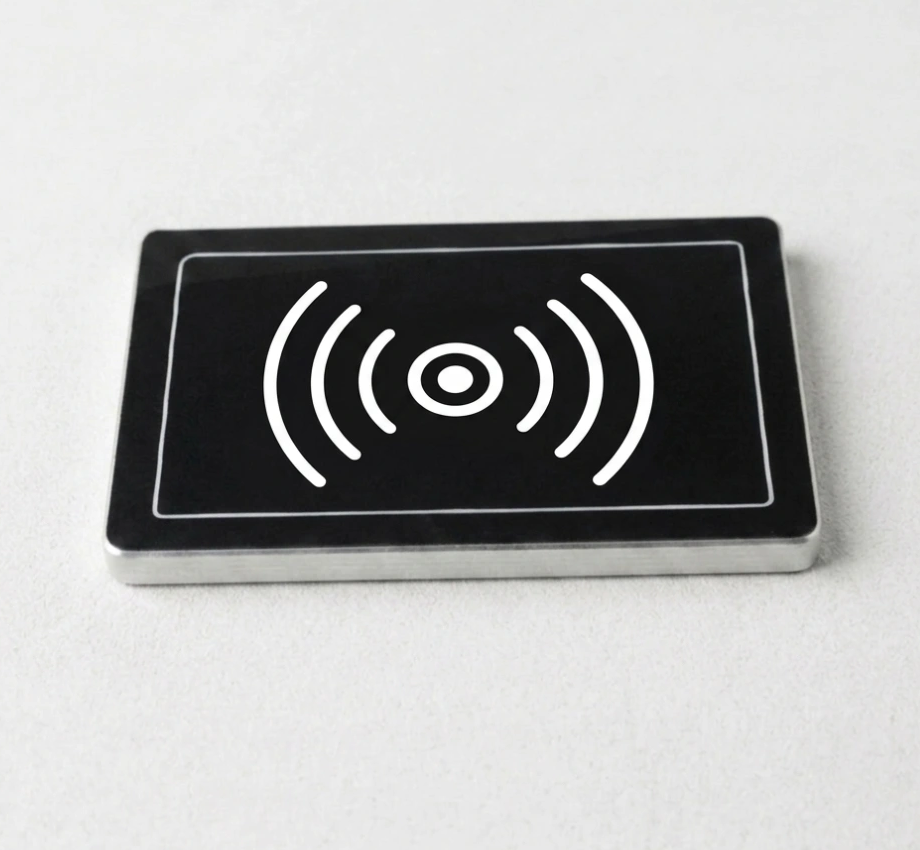

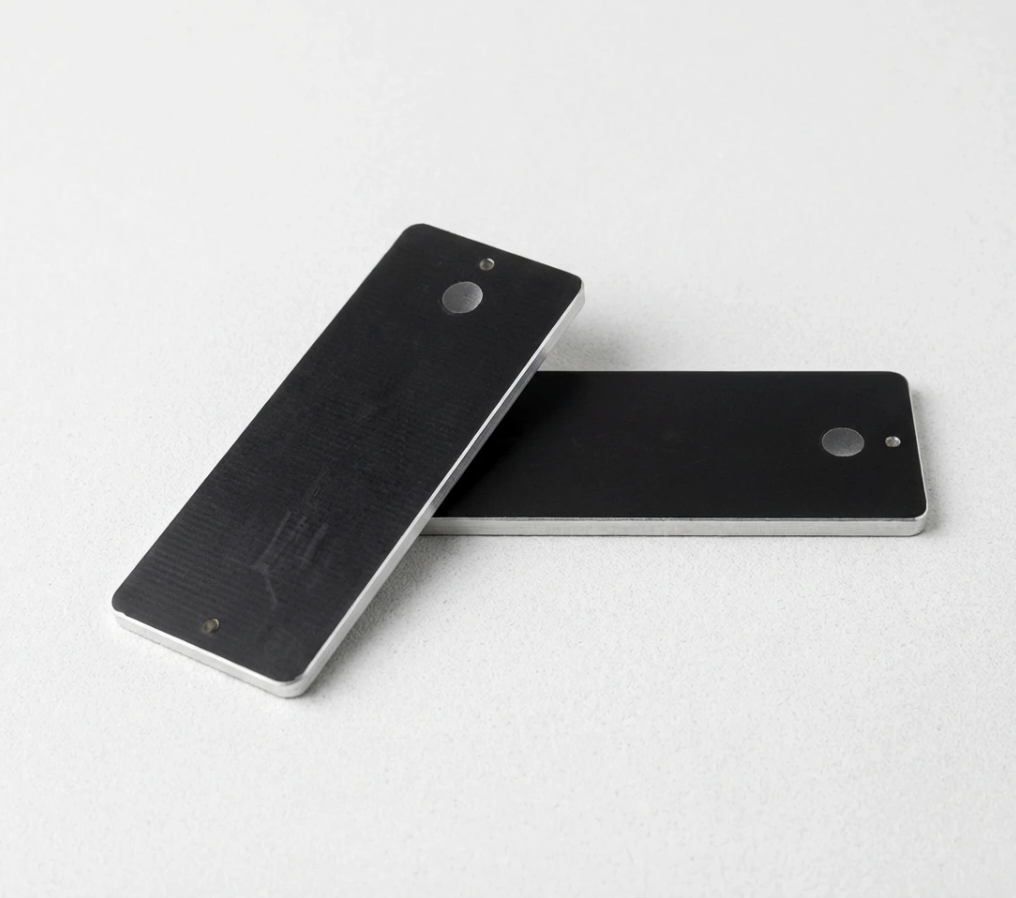

YH-6025 RFID Anti-Metal Tag
Product Model: YH-6025
Material: FR-4
Dimensions: 60251.5mm
Manufacturer / Chip: Impinj M4QT / Alien H3
Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2
Memory Capacity: EPC area 96 bits, User area 128 bits
Applicable Carrier Frequency: 860~960MHz
Service Life: Read cycles over 100,000 times; data retention for 10 years
Reading Distance: 6m on metal surface
Operating Temperature: -40℃ ~ +180℃
Installation Method: 3M adhesive backing or screw holes
Application Scenarios: Metal instruments, mechanical equipment, warehouse shelves, various metal accessories, etc.

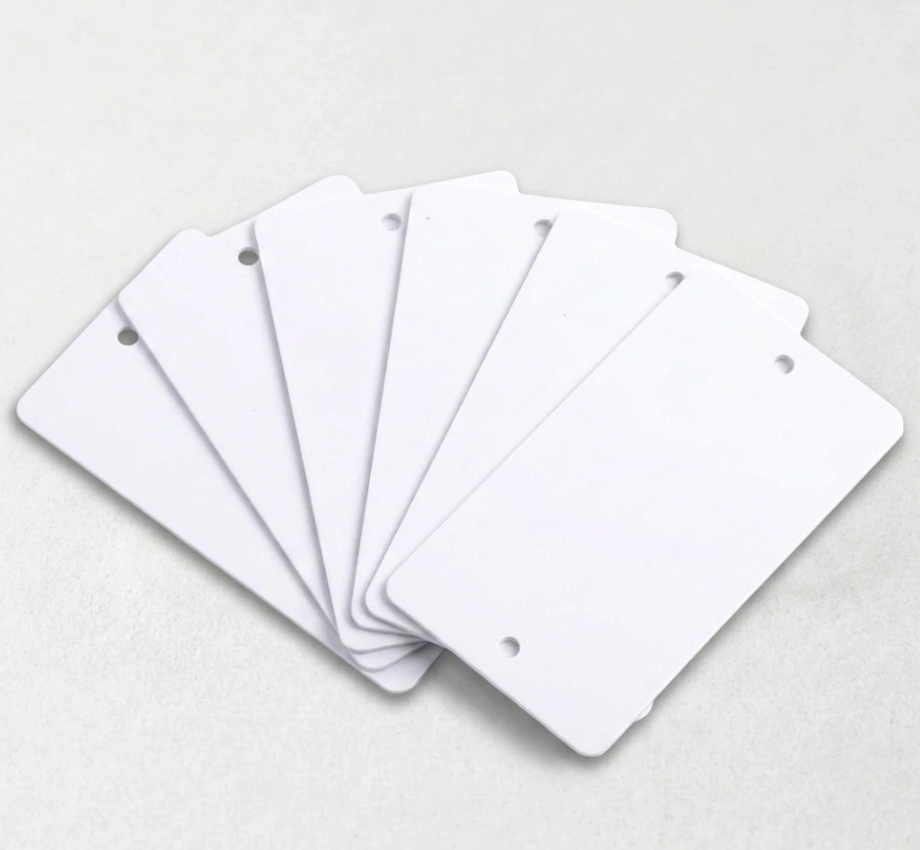

YH-B9033 RFID Blank Card Tag
Product Name: YH-B9033 White Card Tag
Material: PVC / PET
Dimensions: 90331mm
Manufacturer / Chip: Alien / Higgs3
Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2
Memory Capacity: EPC area 96 bits, User area 128 bits
Applicable Carrier Frequency: 860~960MHz
Service Life: Read cycles＞100,000 times; data retention for 10 years
Reading Distance: 6m on metal surface
Operating Temperature: -20°C ~ +70°C
Installation Method: 3M adhesive backing or screw holes
Application Scenarios: Metal instruments, mechanical equipment, warehouse shelves, various metal accessories, etc.

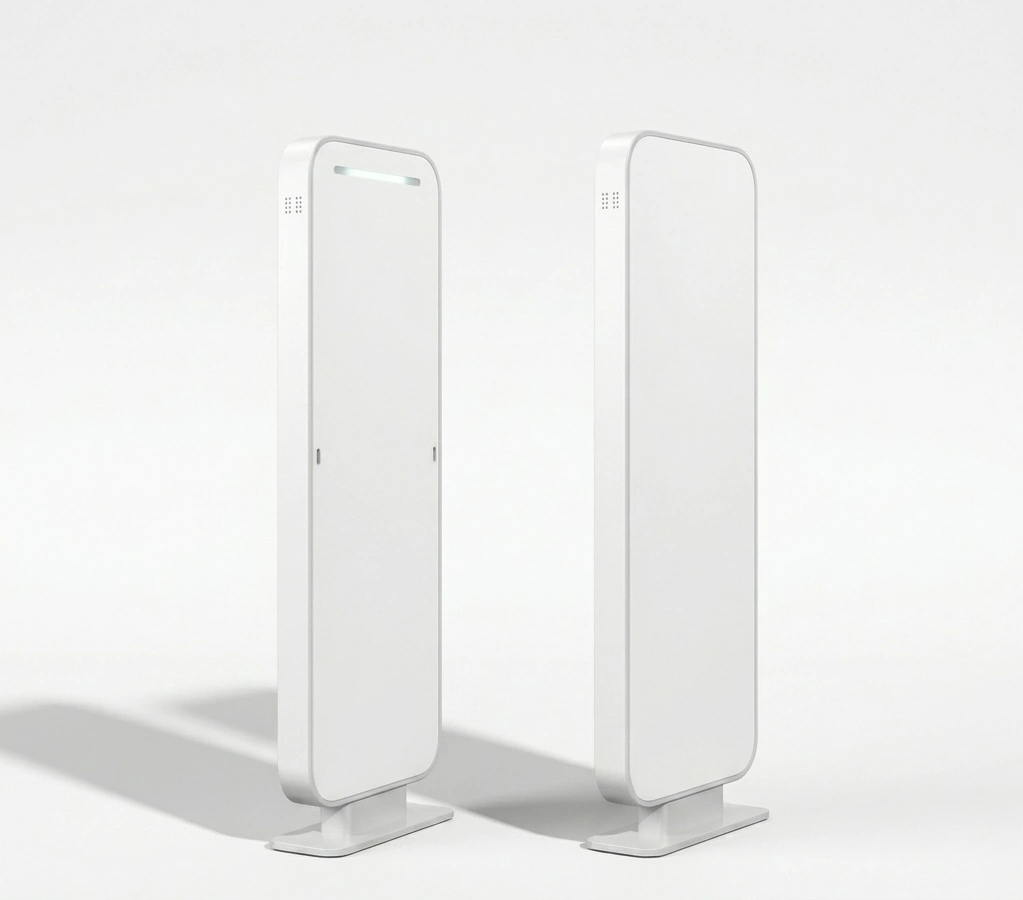

YH-D15 RFID Door
Product Model: YH-D15
Overall Dimensions: 1495mm×450mm×180mm
Screen: 10.1-inch capacitive touch screen (Optional)
Resolution: 1366×788
Communication Interface: Network port; expandable with WiFi, 4G
Operating System: Windows/Android (optional)
Memory: 2G + 8G
RF Performance: Supports multi-tag identification and multiple tag data filtering methods
Reading Distance: 0-2.5m (adjustable by power)
Alarm Method: Sound and light alarm
Alarm Trigger Mode: EAS trigger / Whitelist trigger
Installation Method: No slotting required; equipped with 1.5m stainless steel wire slot and expansion screws
RF Protocol Standard: ISO18000-6C (EPC C1G2), 840MHz-960MHz
Operating Temperature: 0~60℃
Operating Humidity: 10%RH~90%RH
Software Services: Customizable to support message upload via protocols such as Http, WebSocket, MQTT

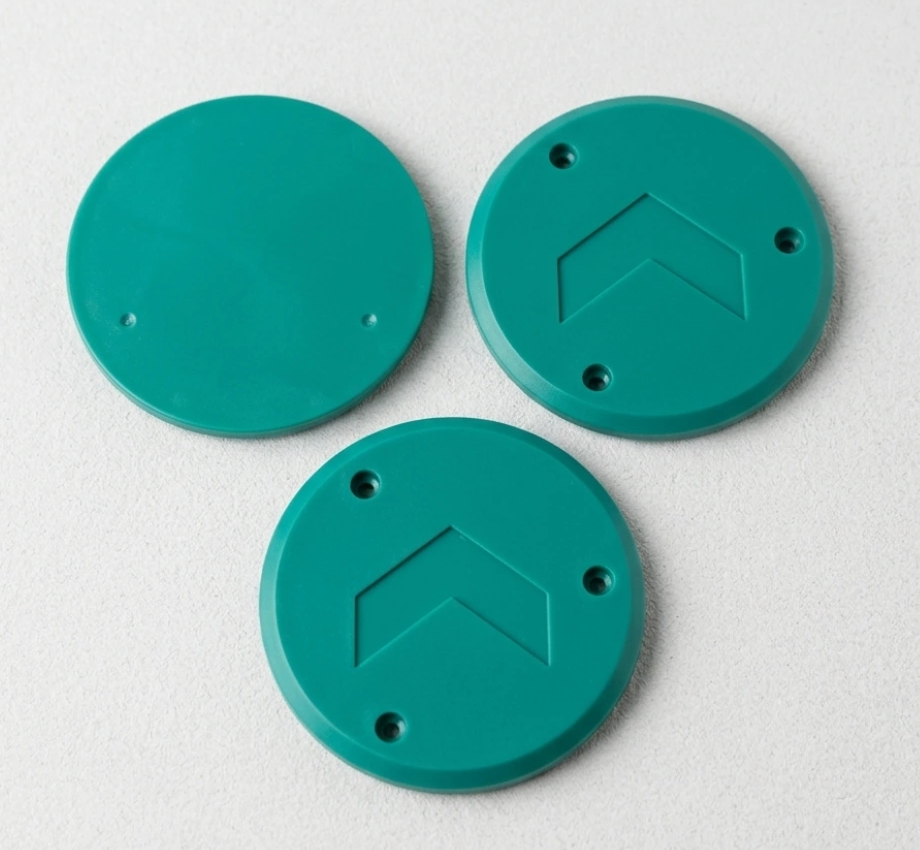

YH-D8072 RFID Location Tag
Product Model: YH-D8072
Overall Dimensions: Radius 40mm × Thickness 5mm
Material: Polyurethane Resin
Chip: Customizable
Memory: EPC 96/128 bits, User Area 32 bits
Write Cycles: More than 100,000 times
Installation Method: Screw mounting, adhesive backing, riveting
Weight: 25g
Ingress Protection Rating: IP68
Operating Temperature: -40℃ ~ +100℃
Storage Temperature: -40℃ ~ +80℃
Other Features: Wear-resistant, anti-aging, capable of withstanding heavy lamination at normal temperature
Pressure Resistance: 3 tons
Application Scenarios: Dedicated for geographic location identification; such as warehouse location management, road surface marking, etc.
Data Retention: 50 years

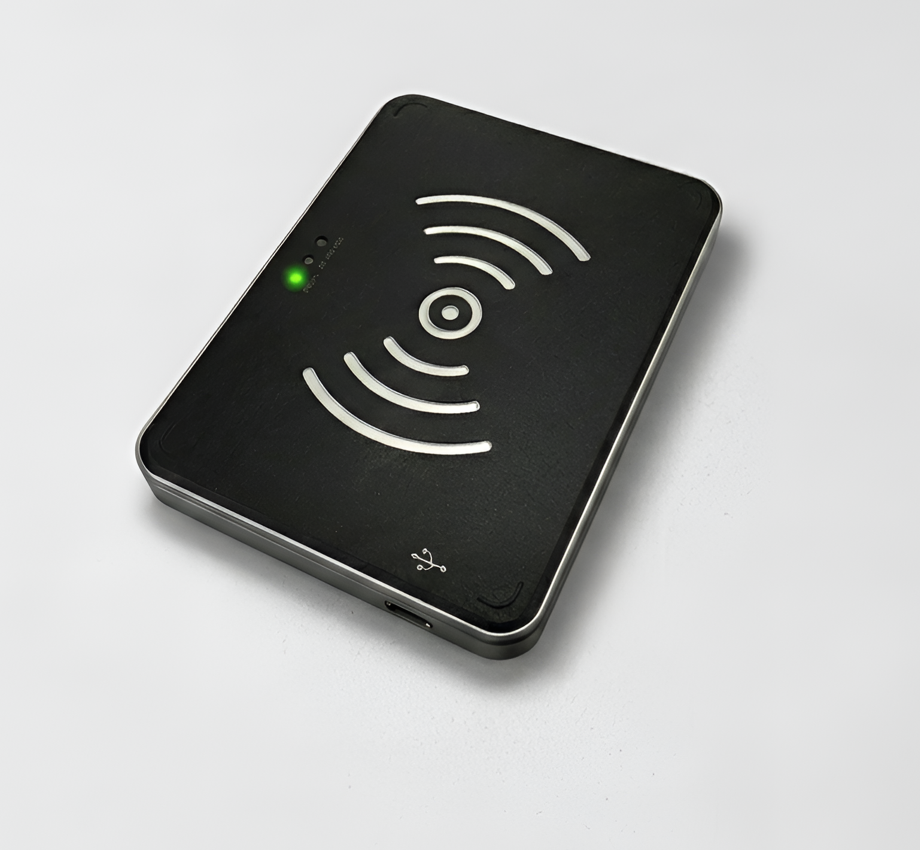

YH-G185 RFID USB Desktop Card Issuer
Product Model: YH-G185
Overall Dimensions: 1428520mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna Gain: 3dBi
Output Power: 0~18dBm
Data Interface: 1 channel; 2 channels of USB to serial port; simulated keyboard function
Power Supply: USB powered
Peak Current: 60mA
Reading Distance: 0~80cm
Writing Distance: 0~15cm
Read/Write Mode: Single read/write, Continuous read/write
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Product Weight: 132g
Software & Services:
Provides development packages and demos in multiple programming languages (C++, C#, Java).
Professional batch card writing tool is provided free of charge, supporting multiple data sources, barcode scanning and Excel import with automatic generation function.
Supports encrypted writing.

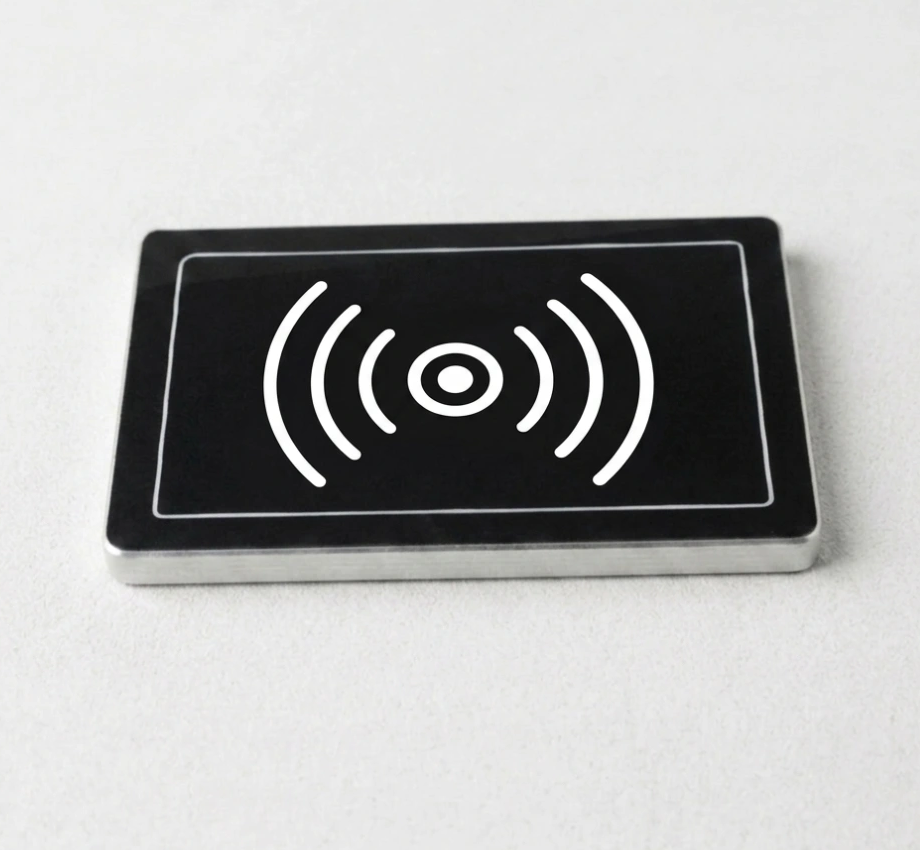

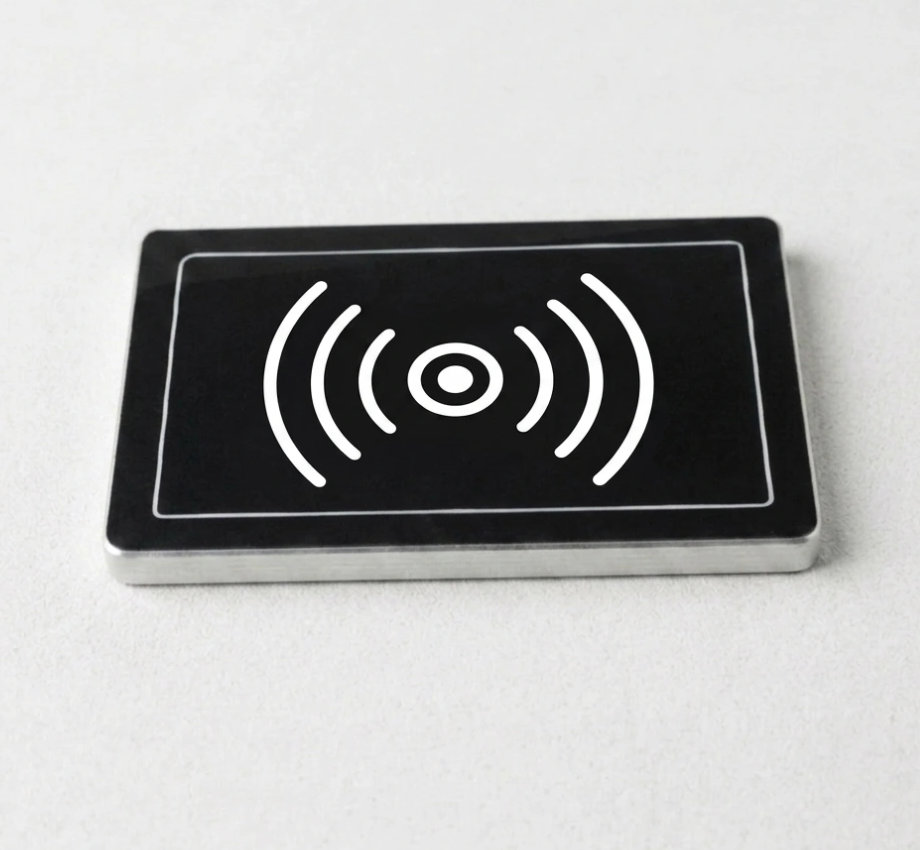

YH-G3700 RFID Checkout Counter
Product Model: YH-G3700
Overall Dimensions: 37028024mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Output Power: 0~30dBm
Data Interface: RJ45, RS232, USB Type-C
Reading Distance: 0~1m, adjustable
Ingress Protection Rating: IP65
Operating Temperature: -20°C ~ +65°C
Storage Temperature: -30°C ~ +85°C
Storage Humidity: 5%~95%RH, non-condensing
Weight: 3kg
Applicable Scenarios: Library & file management, jewelry inventory counting, pharmaceutical management, retail counter settlement, etc.
Software Support: Provides C, C#, Java development kits and Demo programs; offers source code for secondary development.

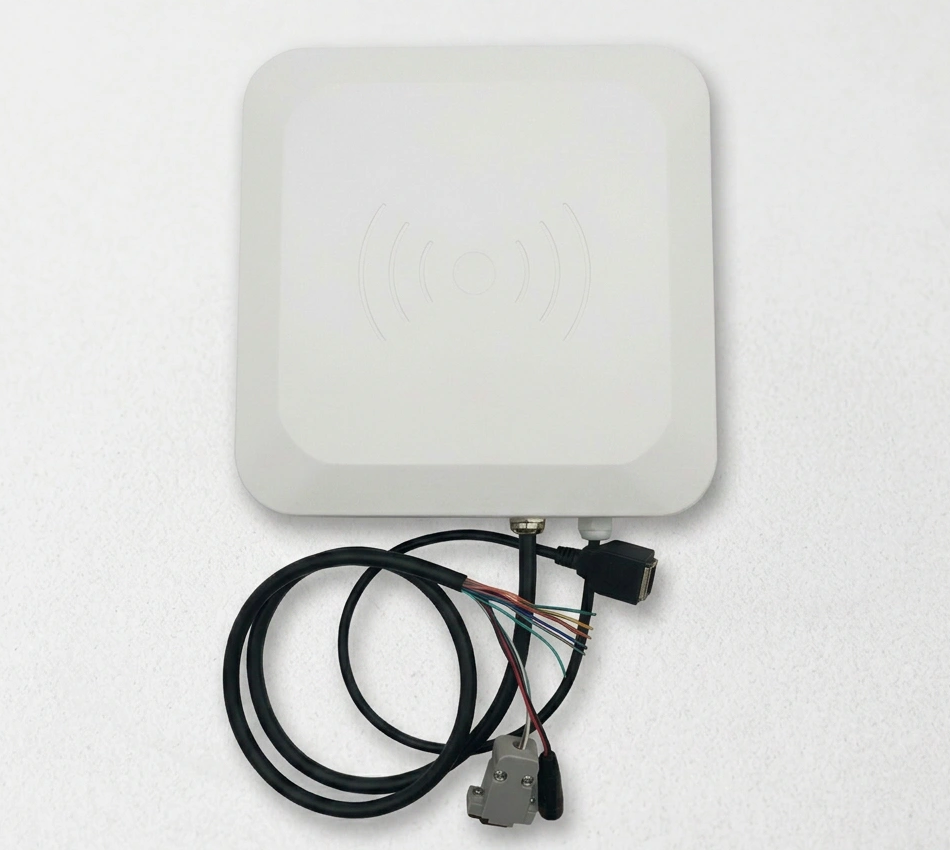

YH-G8190 RFID Integrated Distance Machine
Product Model: YH-G8190
Overall Dimensions: 19019055mm
Antenna Gain: 8dBi
Reading Distance: 0–8m
Communication Interface: RS232 serial port, Wiegand, RS485; optional wired network, Wi-Fi, 4G
Compliance Standards: ISO/IEC 18000-6C, EPC Class 1 Gen2
Operating Frequency Band: 902-908MHz, 865-868MHz (customizable)
Operating Mode: Command mode, Auto mode, Relay trigger mode
Output Power: 0–30dBm
Operating Voltage: DC 12-24V
Total Power Consumption: ＜15W
Operating Temperature: -20°C ~ +65°C
Storage Temperature: -40°C ~ +85°C
Operating Humidity: 5%RH ~ 95%RH (non-condensing)

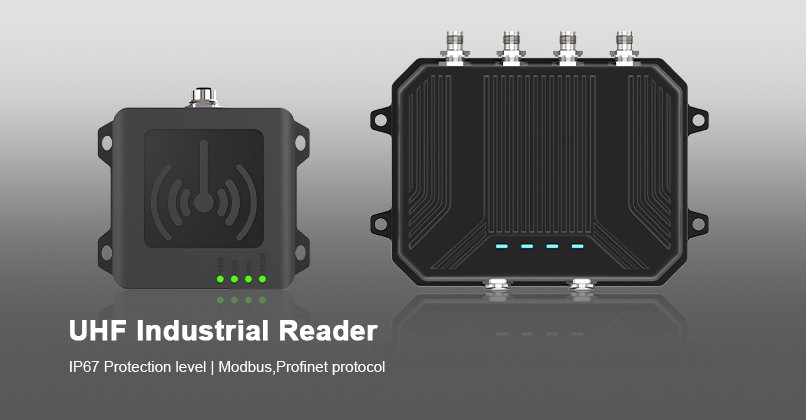

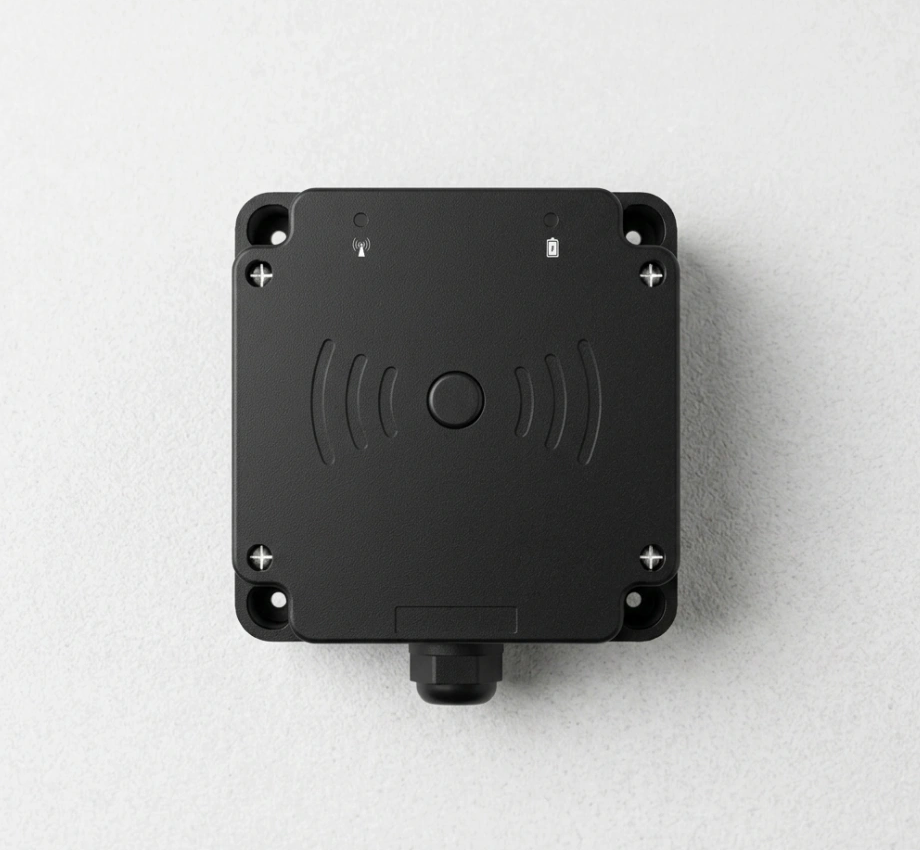

YH-G9540 RFID Industrial Reader
Product Model: YH-G9540
Overall Dimensions: 95*95*40mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna: 40*40mm dual-feed point ceramic antenna
Antenna Gain: 3dBi
Output Power: 0~18dBm
Data Interface: RS232, TCP/IP, MODBUS RTU (TCP/IP),
Profinet TCP/IP, CAN Bus 2.0 (Optional)
Power Supply: Industrial wide voltage design, DC 9-36V
Reading Distance: 0~2m adjustable
Ingress Protection: IP65
Industrial Lightning Protection: 6000V high voltage lightning protection
Operating Temperature: -30°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Storage Humidity: 5%~95%RH, non-condensing

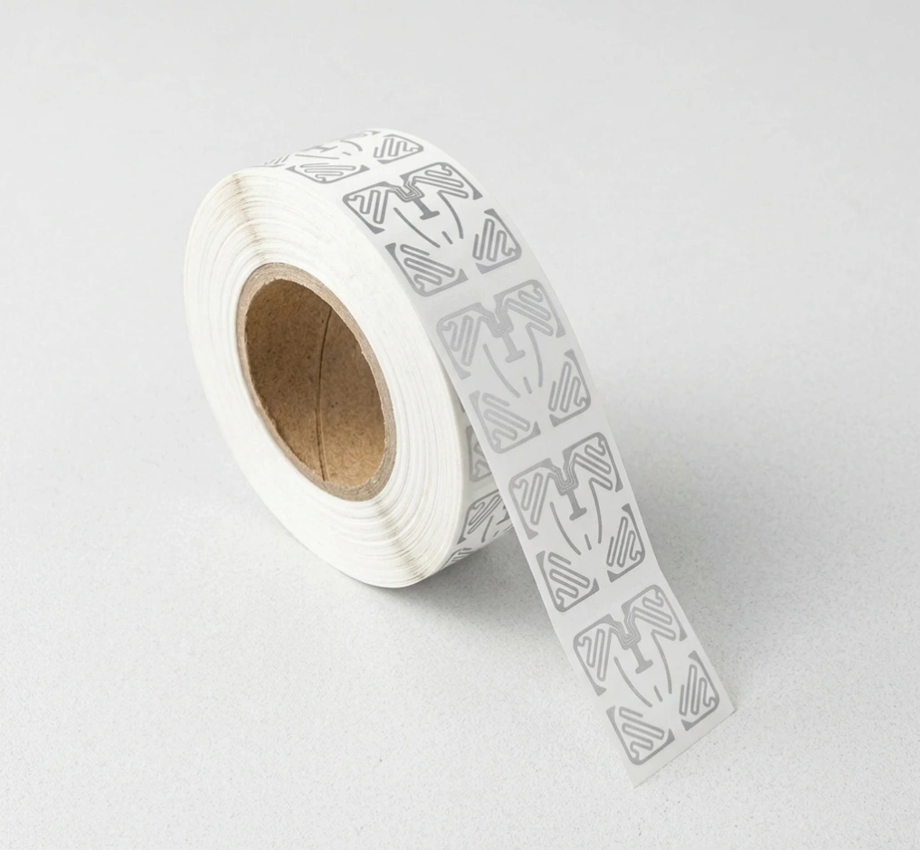

YH-I442 Inlay
Product Name: YH-I47 Wet Inlay
Material: PET
Dimensions: 44*44mm
Manufacturer / Chip: IMPINJ / Monza4D / 4E / 4QT
Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2
Memory Capacity: EPC 96/128 bit, User 128/512 bit
Applicable Carrier Frequency: 860~960MHz, Passive
Service Life: Read cycles over 100,000 times; data retention for 10 years
Reading Distance: 15m
Application Scenarios: Apparel, retail, asset management, logistics, etc.
Features: Long reading distance and fast identification speed, suitable for application scenarios requiring rapid mass tag reading

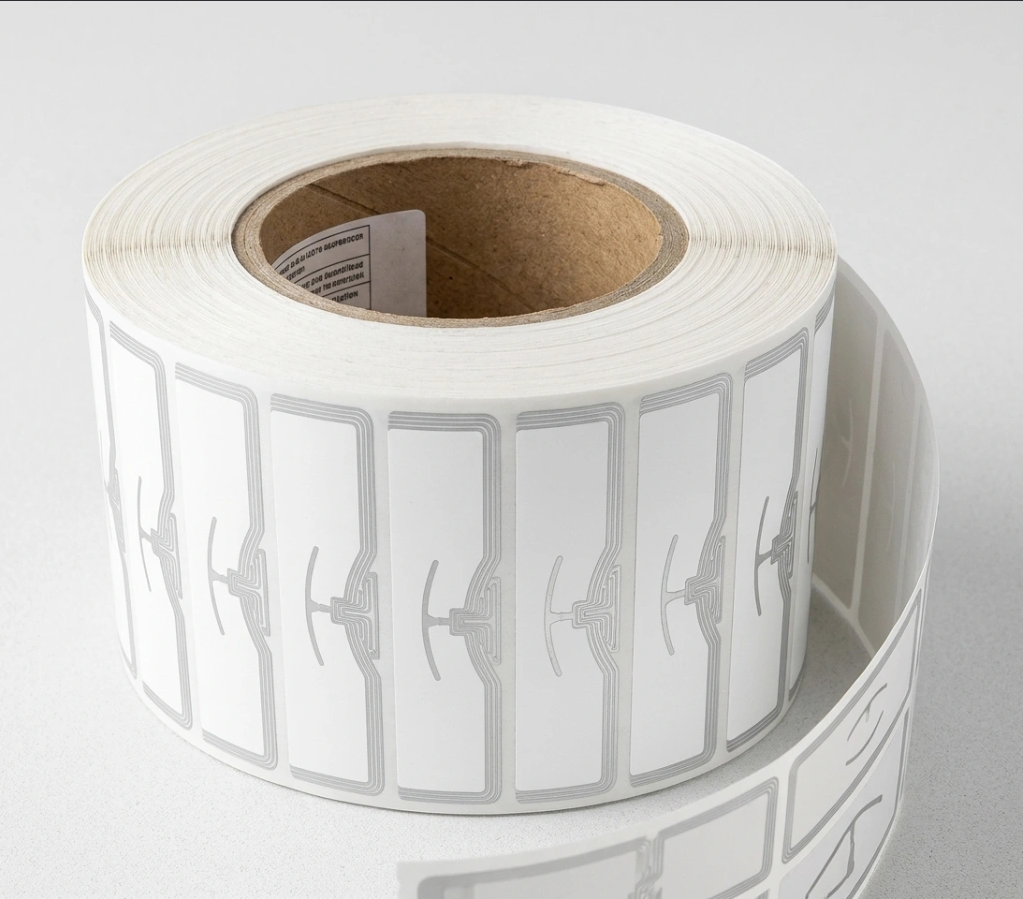

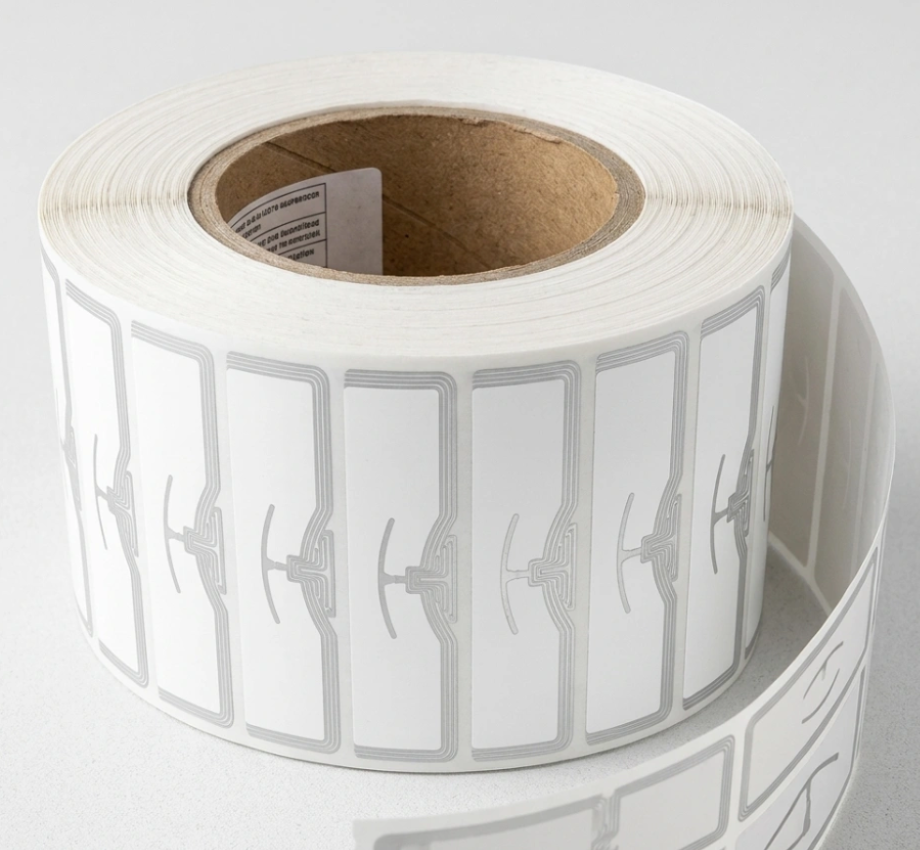

YH-I96523 RFID Flexible Tag
Product Model: YH-I96523
Material: PVC with self-adhesive backing, pasteable
Dimensions: 96.5*23mm
Manufacturer / Chip: Alien / Higgs3
Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2
Memory Capacity: EPC 12 bytes, User 64 bytes
Applicable Carrier Frequency: 860~960MHz
Service Life: Over 100,000 read cycles; data retention for 10 years
Reading Distance: 15m
Application Scenarios: Apparel, libraries, warehouses and other environments
YH-R7030 RFID Flexible Anti-Metal Tag
Product Model: YH-R7030
Material: PET / Aluminum Foil / Foam
Dimensions: 70300.6mm
Manufacturer / Chip: Impinj Monza R6 / R6-P / R6-A
Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2
Memory Capacity: 96bits / 128bits
Applicable Carrier Frequency: 860~960MHz
Service Life: Read cycles over 100,000 times; data retention for 10 years
Reading Distance: 6m on metal surface
Operating Temperature: -40℃ ~ +85℃
Installation Method: Self-adhesive backing
Printer Compatibility: Compatible with mainstream printers such as SATO CL4NX, Zebra ZT410; customizable printing format
Application Scenarios: Metal instruments, mechanical equipment, warehouse shelves, various metal accessories, etc.
CHAFON
Shenzhen Yunhe Guangzhi IoT Technology Co., Ltd.
Founded in 2024, Shenzhen Yunhe Guangzhi IoT Technology Co., Ltd. is a high-tech enterprise specializing in RFID industry application solutions. Our core team brings more than 10 years of in-depth expertise in the RFID sector, with end-to-end capabilities spanning hardware R&D, customized software development, and system integration. We deliver stable and reliable IoT solutions for a wide range of industries.
Our business covers asset management, warehouse logistics, intelligent transportation, personnel positioning, intelligent manufacturing, smart agriculture, port and terminal operations, archives management, apparel manufacturing and retail, among other scenarios. Leveraging core technologies including UHF, active RFID, and integrated positioning, we enable asset visualization, intelligent workflows, and digital management, helping businesses reduce costs, improve efficiency, and enhance operational safety and management effectiveness.
Committed to technology-driven and scenario-oriented innovation, we independently develop industry-specific RFID hardware and management platforms, providing one-stop delivery and implementation services for both software and hardware solutions.
Headquartered in Shenzhen and serving customers nationwide, Yunhe Guangzhi IoT strives to become a trusted, professional RFID and IoT solution provider in China, empowering the digital transformation of all industries through technological innovation.
0
Partners
0
Projects
0
Countries
Customized & Development
Software and hardware R & D design, special customized & manufacturing one-stop services.
Free cloud platform management
Support IOT device end-to-end functional.Help customer quickly build loT management cloud platform
Pre-Sales Technical Support
Assists customers in collecting and analyzing application.requirements,recommend cost-effective product solutions
After-sales technical support
Provide completed SDK, API, source code, support second development
