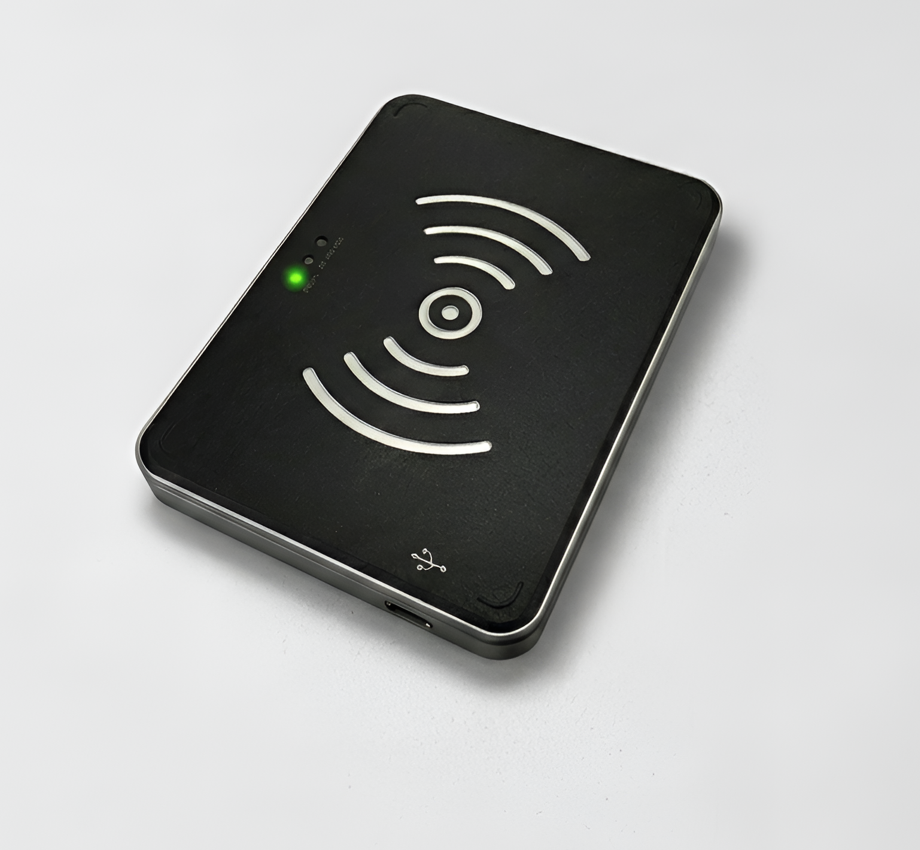

YH-G185 Fixed RFID Reader
Click to enlarge

YH-G185 UHF fixed RFID reader

Product Model: YH-G185

Overall Dimensions: 1428520mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna Gain: 3dBi
Output Power: 0~18dBm
Data Interface: 1 channel; 2 channels of USB to serial port; simulated keyboard function
Power Supply: USB powered
Peak Current: 60mA
Reading Distance: 0~80cm
Writing Distance: 0~15cm
Read/Write Mode: Single read/write, Continuous read/write
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Product Weight: 132g

Software & Services:

Provides development packages and demos in multiple programming languages (C++, C#, Java).

Professional batch card writing tool is provided free of charge, supporting multiple data sources, barcode scanning and Excel import with automatic generation function.

Supports encrypted writing.

YH-G185 Fixed RFID Reader Introduction

YH-G185 fixed UHF RFID reader is a stable and practical radio frequency identification reading and writing device. It adopts standard universal radio frequency protocol, with reasonable power design and compact structure, widely used in asset identification, access control management, warehouse card swiping and other scenarios.

Basic Product Parameters

Product Model: YH-G185
Overall Dimensions: 142*85*20mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna Gain: 3dBi
Output Power: 0~18dBm

Interface and Power Specification

Data Interface: 1 channel; 2 channels of USB to serial port; simulated keyboard function
Power Supply: USB powered
Peak Current: 60mA
Product Weight: 132g

Reading and Writing Performance

This RFID reader has stable reading and writing performance. The reading distance ranges from 0 to 80cm, and the writing distance is 0 to 15cm.
It supports single read/write and continuous read/write two working modes, which can meet different working frequency requirements on site.

Temperature Adaptability

The device has strong environmental adaptability. The working temperature ranges from -20°C to +75°C, and the storage temperature is from -40°C to +85°C. It can keep stable operation in most indoor and conventional industrial environments.

Software and Technical Support

We provide complete technical supporting services for YH-G185 reader. It comes with development packages and demo programs in multiple languages including C++, C# and Java.
Free professional batch card writing tool is available, which supports barcode scanning, Excel data import and automatic data generation. This device also supports encrypted data writing to ensure information security during use.

Application Advantages

With USB direct power supply design, this reader is easy to install and convenient to deploy. Rich communication interfaces make it easy to connect with various industrial control equipment, management systems and host computers. It is an economical and reliable choice for enterprise RFID project deployment.

RELATED PRODUCTS

Hot

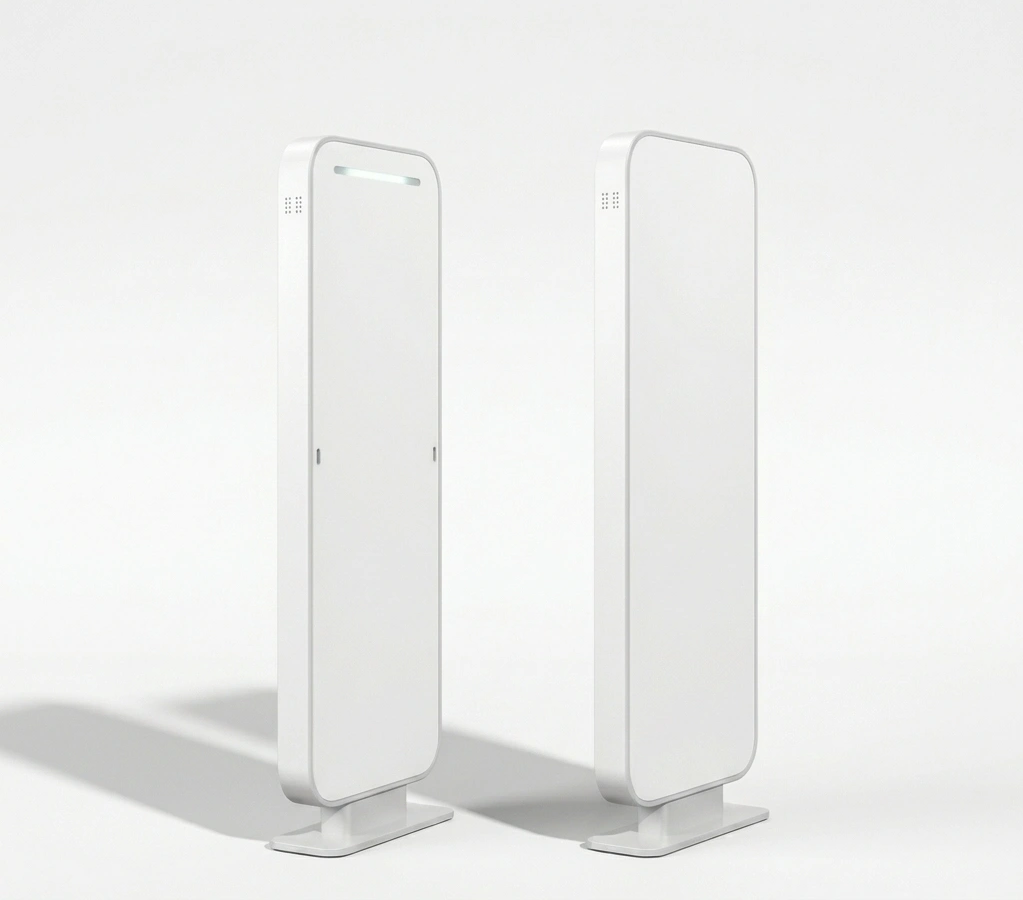

YH-D15 RFID Channel Access Control UHF Security Gate

YH-D15 RFID Door

Read more
Product Model: YH-D15
Overall Dimensions: 1495mm×450mm×180mm
Screen: 10.1-inch capacitive touch screen (Optional)
Resolution: 1366×788
Communication Interface: Network port; expandable with WiFi, 4G
Operating System: Windows/Android (optional)
Memory: 2G + 8G
RF Performance: Supports multi-tag identification and multiple tag data filtering methods
Reading Distance: 0-2.5m (adjustable by power)
Alarm Method: Sound and light alarm
Alarm Trigger Mode: EAS trigger / Whitelist trigger
Installation Method: No slotting required; equipped with 1.5m stainless steel wire slot and expansion screws
RF Protocol Standard: ISO18000-6C (EPC C1G2), 840MHz-960MHz
Operating Temperature: 0~60℃
Operating Humidity: 10%RH~90%RH
Software Services: Customizable to support message upload via protocols such as Http, WebSocket, MQTT

YH-G3700 RFID Checkout Counter

Read more
Product Model: YH-G3700
Overall Dimensions: 37028024mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Output Power: 0~30dBm
Data Interface: RJ45, RS232, USB Type-C
Reading Distance: 0~1m, adjustable
Ingress Protection Rating: IP65
Operating Temperature: -20°C ~ +65°C
Storage Temperature: -30°C ~ +85°C
Storage Humidity: 5%~95%RH, non-condensing
Weight: 3kg
Applicable Scenarios: Library & file management, jewelry inventory counting, pharmaceutical management, retail counter settlement, etc.
Software Support: Provides C, C#, Java development kits and Demo programs; offers source code for secondary development.

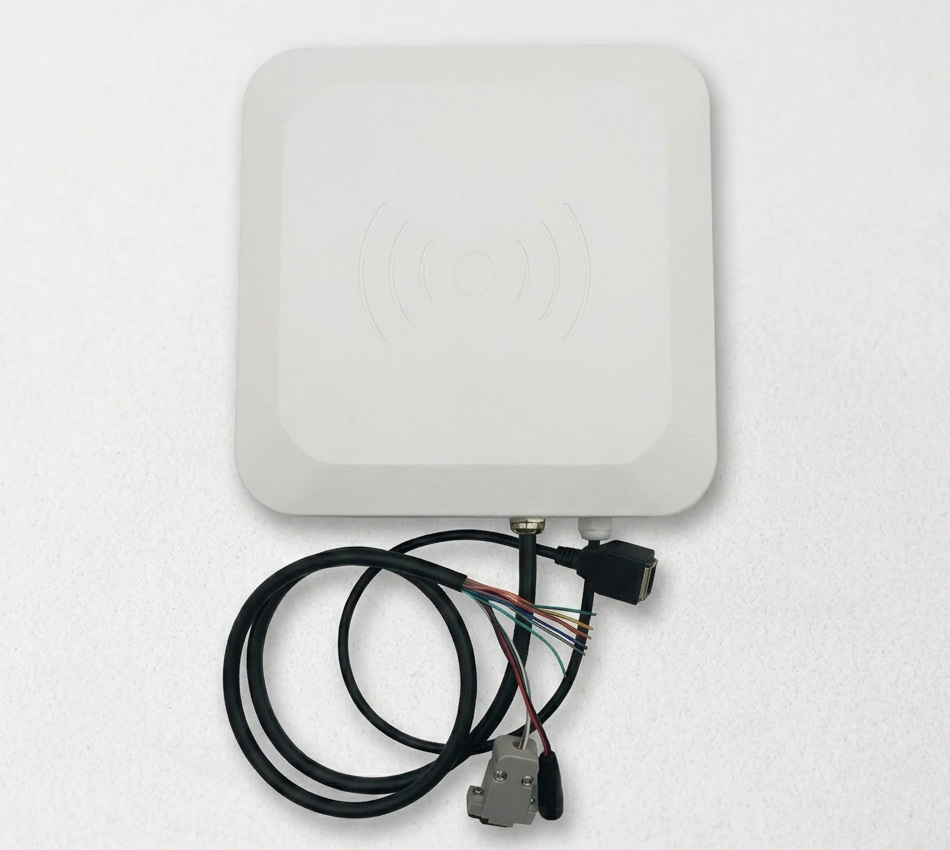

YH-G8190 RFID Integrated Distance Machine
