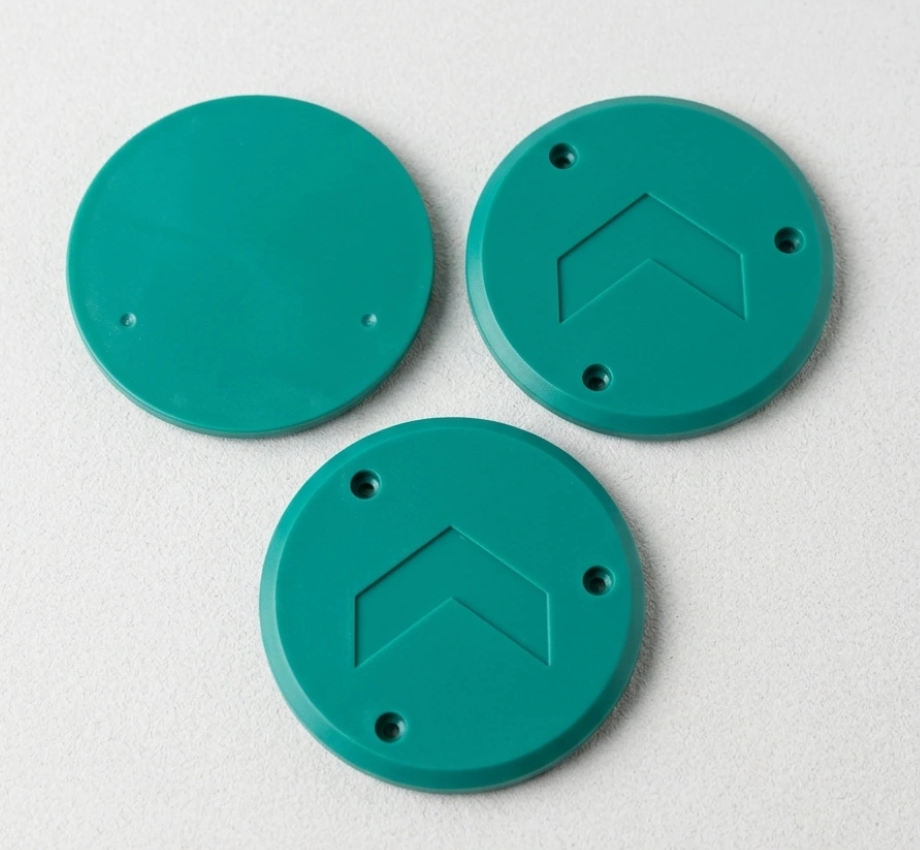

YH-D8072 RFID Location Tag

1. Product Overview of YH-D8072 RFID Location Tag

The YH-D8072 RFID Location Tag is a dedicated industrial electronic tag designed exclusively for geographic location identification, built to deliver reliable performance in the harshest indoor and outdoor environments. Manufactured from high-strength polyurethane resin, this YH-D8072 RFID Location Tag offers exceptional wear resistance, anti-aging properties, and the ability to withstand heavy lamination pressure at normal temperatures, ensuring a long service life even with constant exposure to heavy machinery, foot traffic, and extreme weather.

With compact dimensions of 40mm radius × 5mm thickness and a lightweight net weight of just 25g, the YH-D8072 RFID Location Tag is easy to deploy across a wide range of fixed-point identification scenarios. It boasts an IP68 ingress protection rating, making it fully dustproof and waterproof, and can withstand up to 3 tons of pressure, making it ideal for installation on warehouse floors, road surfaces, and other high-traffic areas.

2. Core Specifications of YH-D8072 RFID Location Tag

This YH-D8072 RFID Location Tag supports customizable chips to match your existing RFID system requirements, with standard memory configurations of 96/128 bits EPC and 32 bits user area. It offers over 100,000 write cycles, allowing for repeated data updates without performance degradation, and guarantees 50 years of data retention, eliminating the need for frequent tag replacement and ensuring long-term traceability for your location management system.

The YH-D8072 RFID Location Tag operates reliably in an extreme temperature range of -40℃ to +100℃, with a storage temperature range of -40℃ to +80℃, making it suitable for use in cold storage facilities, outdoor road marking projects, and industrial warehouses with fluctuating temperatures.

3. Installation & Application of YH-D8072 RFID Location Tag

To suit different installation environments, the YH-D8072 RFID Location Tag supports three flexible installation methods: screw mounting, high-strength adhesive backing, and riveting. This versatility allows the tag to be installed on concrete, asphalt, metal, and wood surfaces, making it perfect for a wide range of use cases.

Common applications for the YH-D8072 RFID Location Tag include warehouse location management, road surface marking, site geographic positioning, equipment fixed-point tracking, and asset location identification. Whether you need to manage inventory locations in a large distribution center, mark reference points on a construction site, or track fixed assets in an industrial facility, this YH-D8072 RFID Location Tag delivers consistent, accurate performance.

4. Why Choose YH-D8072 RFID Location Tag

Compared to standard RFID tags, the YH-D8072 RFID Location Tag is purpose-built for long-term fixed-point location use, with a rugged construction that outlasts general-purpose tags. Its IP68 rating, 3-ton pressure resistance, and wide temperature range make it a cost-effective solution for any project that requires durable, long-lasting geographic identification.
