YH-D15 RFID Door

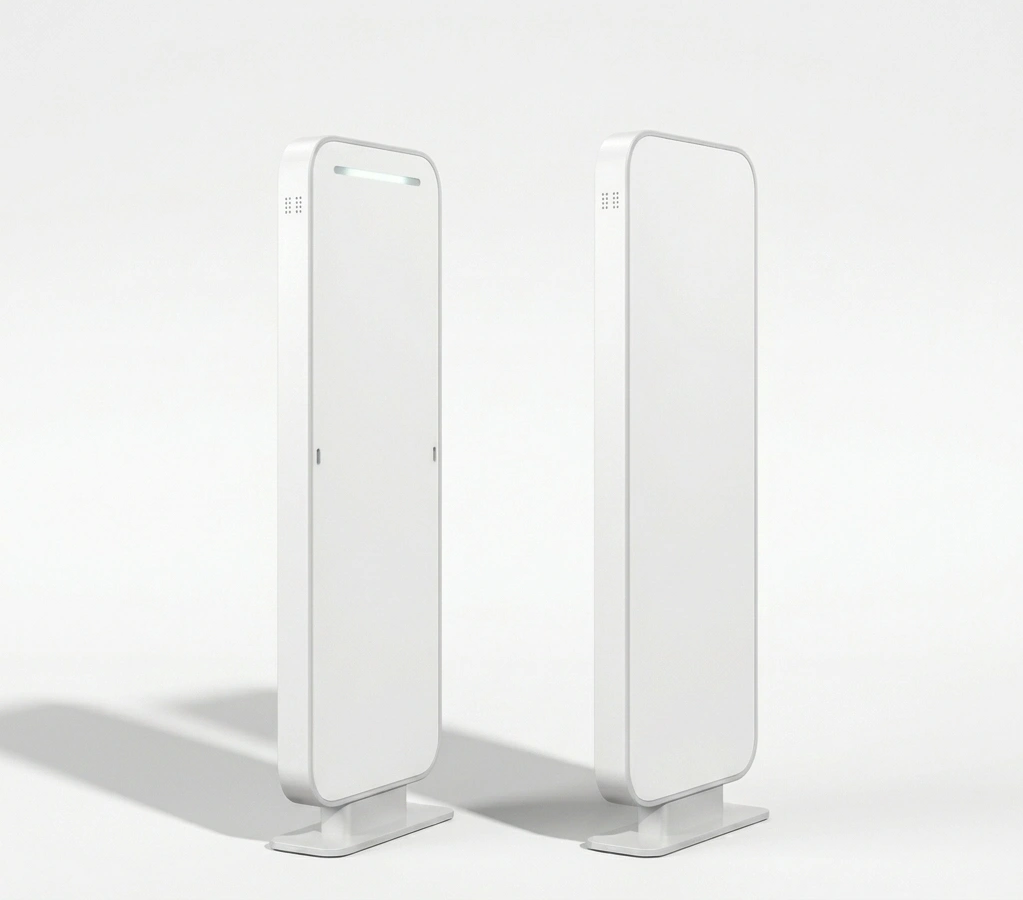

YH-D15 RFID Channel Access Control Overview

YH-D15 RFID Channel Access Control is a professional UHF radio frequency identification security gate device, strictly complying with ISO18000-6C (EPC C1G2) protocol standard. With simple and elegant appearance design, stable performance and reliable quality, it has become the preferred access control identification device for asset management, warehouse access, goods anti-lost and other scenarios.

Basic Product Parameters

Product Model: YH-D15
Overall Dimensions: 1495mm×450mm×180mm
Screen: 10.1-inch capacitive touch screen (Optional)
Resolution: 1366×788
Operating System: Windows/Android (optional)
Memory: 2G + 8G
RF Protocol Standard: ISO18000-6C (EPC C1G2), 840MHz-960MHz

Communication & Interface Configuration

This RFID channel access control is equipped with standard network port for stable wired data transmission. It supports flexible expansion of WiFi and 4G wireless communication modes, which can perfectly adapt to various on-site deployment environments without wiring limitation.
It also supports multiple data upload protocols, including Http, WebSocket, MQTT, realizing efficient and real-time data interaction with upper management system.

RF Identification Performance

YH-D15 RFID Channel Access Control delivers excellent UHF identification performance, supporting efficient multi-tag parallel identification and multiple tag data filtering methods.
The reading distance is 0-2.5m, which can be flexibly adjusted by output power. It adopts infrared-triggered reading mode, effectively reducing misreading and missing reading, and ensuring accurate identification of passing tags.

Alarm System & Trigger Mode

The device integrates integrated sound and light alarm function, with built-in high-brightness alarm indicator and buzzer. It supports both online and offline dual-mode alarm, including EAS trigger mode and Whitelist trigger mode.
Once abnormal access or unauthorized tag passing is detected, it will immediately send out sound and light warnings, realizing real-time and efficient safety supervision.

Installation & Environment Adaptability

YH-D15 adopts convenient installation design, no slotting construction is required. It is equipped with 1.5m stainless steel wire slot and matching expansion screws, realizing quick and standardized installation.
It has wide environment adaptability, with operating temperature of 0~60℃ and operating humidity of 10%RH~90%RH, suitable for long-term stable operation in indoor warehouse and workshop environments.

Core Product Advantages

This channel access control adopts dedicated optimized antenna design, which can precisely control the induction coverage area without any identification blind spots. The maximum channel width can reach 2.5 meters, with strong adaptability to different deployment spacing.
It supports external display screen to show real-time information and quantity of passing items, realizing visual and intelligent on-site management.

Software Development & Customization Service

We provide complete supporting SDK development kit for YH-D15 RFID Channel Access Control, supporting quick API development and calling within 30 minutes, with simple integration and low development difficulty.
The product supports in-depth function customization, and can be flexibly adapted to diversified industry demands such as fixed asset management, warehouse in-out supervision, industrial goods anti-lost management and other customized scenarios.
