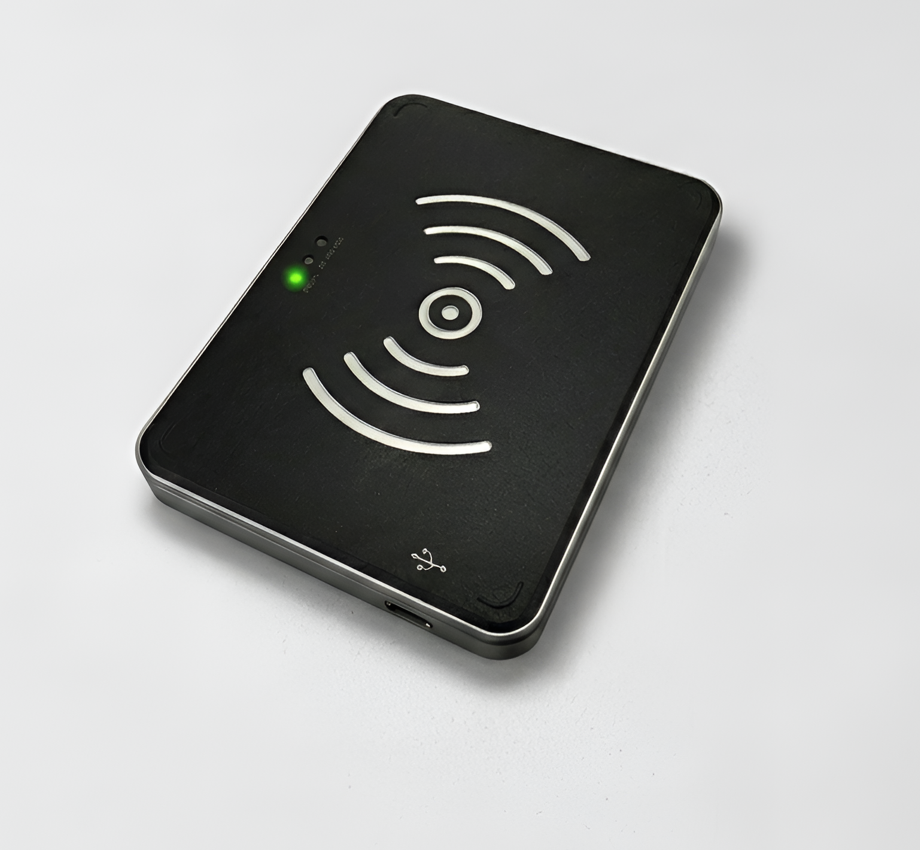

YH-G185 RFID USB Desktop Card Issuer

Read more
Product Model: YH-G185
Overall Dimensions: 1428520mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna Gain: 3dBi
Output Power: 0~18dBm
Data Interface: 1 channel; 2 channels of USB to serial port; simulated keyboard function
Power Supply: USB powered
Peak Current: 60mA
Reading Distance: 0~80cm
Writing Distance: 0~15cm
Read/Write Mode: Single read/write, Continuous read/write
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Product Weight: 132g
Software & Services:
Provides development packages and demos in multiple programming languages (C++, C#, Java).
Professional batch card writing tool is provided free of charge, supporting multiple data sources, barcode scanning and Excel import with automatic generation function.
Supports encrypted writing.

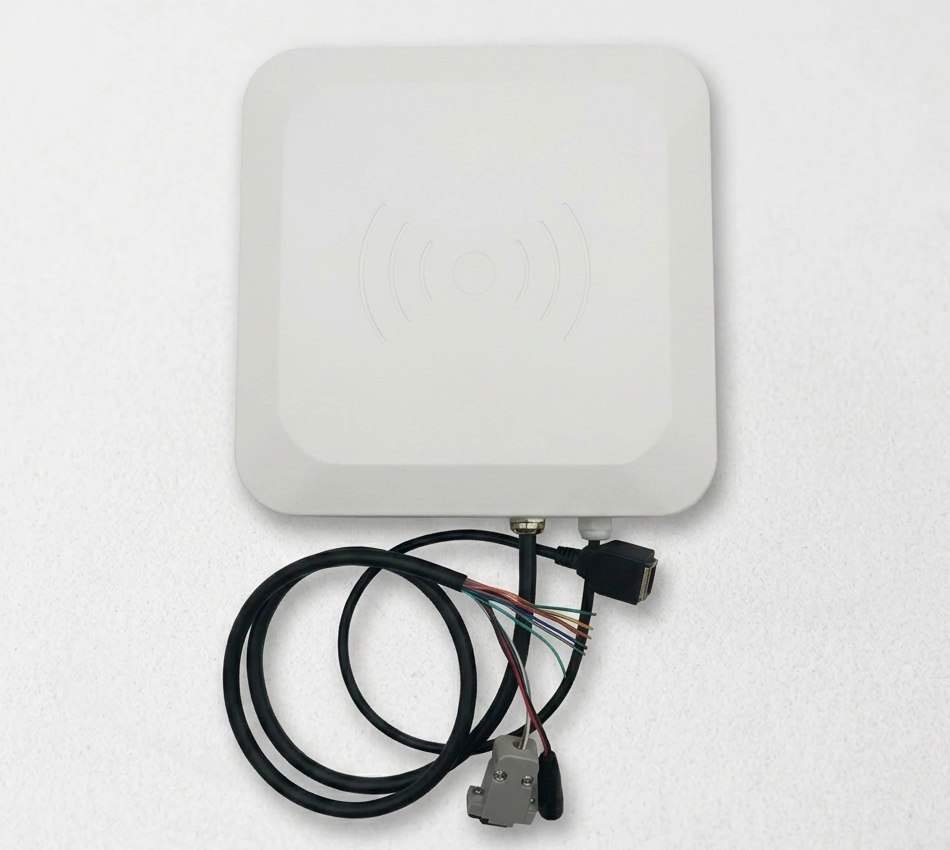

YH-G8190 RFID Integrated Distance Machine

Read more
Product Model: YH-G8190
Overall Dimensions: 19019055mm
Antenna Gain: 8dBi
Reading Distance: 0–8m
Communication Interface: RS232 serial port, Wiegand, RS485; optional wired network, Wi-Fi, 4G
Compliance Standards: ISO/IEC 18000-6C, EPC Class 1 Gen2
Operating Frequency Band: 902-908MHz, 865-868MHz (customizable)
Operating Mode: Command mode, Auto mode, Relay trigger mode
Output Power: 0–30dBm
Operating Voltage: DC 12-24V
Total Power Consumption: ＜15W
Operating Temperature: -20°C ~ +65°C
Storage Temperature: -40°C ~ +85°C
Operating Humidity: 5%RH ~ 95%RH (non-condensing)

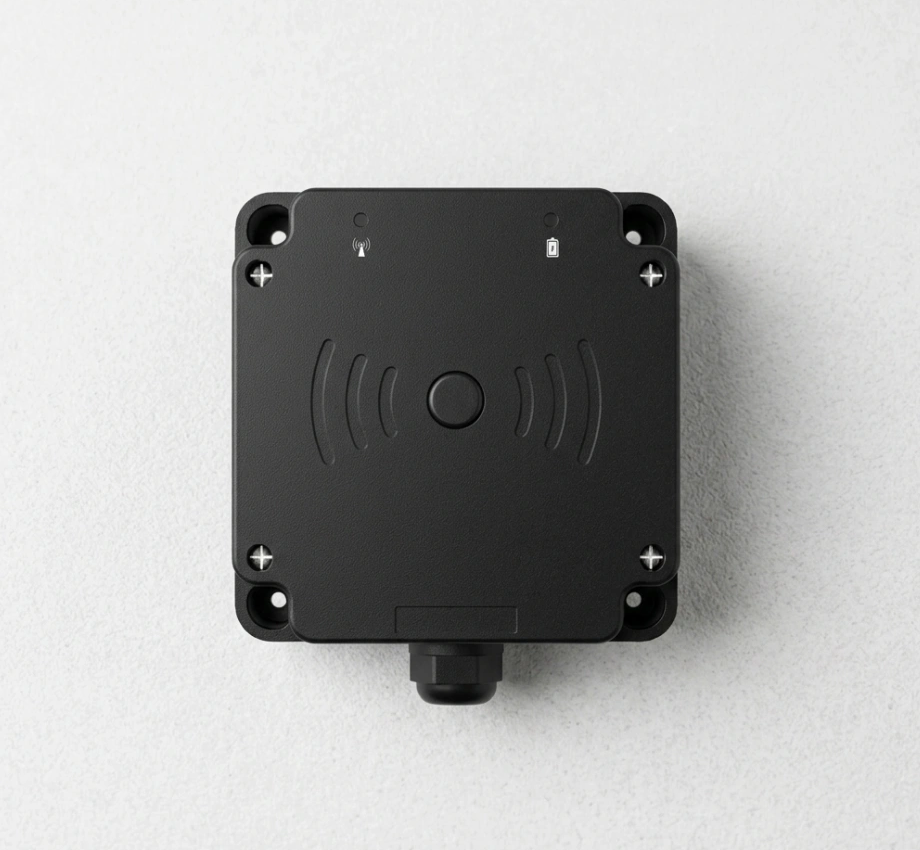

YH-G9540 RFID Industrial Reader

Read more

Product Model: YH-G9540

Overall Dimensions: 95*95*40mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna: 40*40mm dual-feed point ceramic antenna
Antenna Gain: 3dBi
Output Power: 0~18dBm
Data Interface: RS232, TCP/IP, MODBUS RTU (TCP/IP),
Profinet TCP/IP, CAN Bus 2.0 (Optional)
Power Supply: Industrial wide voltage design, DC 9-36V
Reading Distance: 0~2m adjustable
Ingress Protection: IP65
Industrial Lightning Protection: 6000V high voltage lightning protection
Operating Temperature: -30°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Storage Humidity: 5%~95%RH, non-condensing
