YH-G8190 RFID Integrated Distance Reader

1. Product Overview of YH-G8190 RFID Integrated Distance Reader

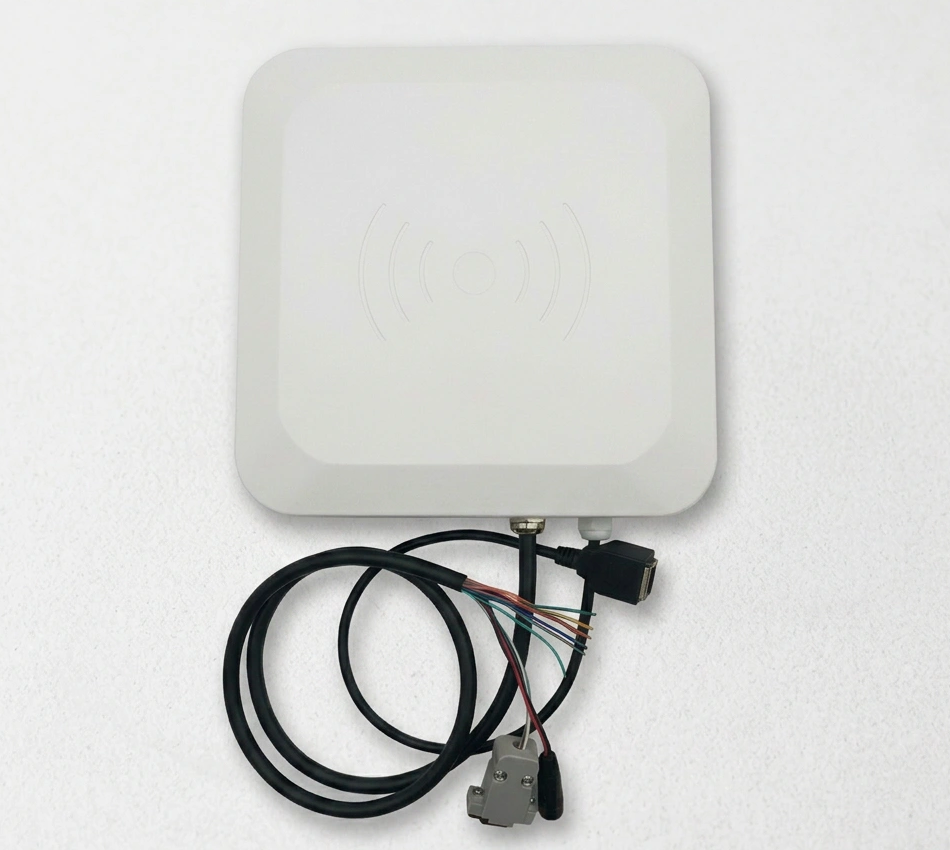

The YH-G8190 RFID Integrated Distance Reader is a high-performance industrial UHF RFID reader designed for long-range identification, built to deliver stable and reliable performance in diverse indoor and outdoor working environments. With a compact integrated design of 190×190×55mm, this YH-G8190 RFID Integrated Distance Reader is easy to install and adapt to various application scenarios, eliminating the need for complex assembly and deployment processes.

Equipped with a built-in 8dBi high-gain antenna, the YH-G8190 RFID Integrated Distance Reader supports an adjustable reading distance from 0 to 8 meters, meeting the identification requirements of different ranges. It fully complies with ISO/IEC 18000-6C and EPC Class 1 Gen2 international standards, ensuring excellent compatibility with most UHF RFID tags on the market.

2. Core Specifications of YH-G8190 RFID Integrated Distance Reader

The YH-G8190 RFID Integrated Distance Reader supports multiple operating frequency bands, including 902-908MHz and 865-868MHz, with customizable frequency options to match regional regulatory requirements. Its output power is adjustable from 0 to 30dBm, allowing users to flexibly adjust the reading range according to actual use needs.

This YH-G8190 RFID Integrated Distance Reader provides rich communication interfaces as standard, including RS232 serial port, Wiegand, and RS485, with optional wired network, Wi-Fi, and 4G modules for flexible network deployment. It supports three operating modes: Command mode, Auto mode, and Relay trigger mode, adapting to different system integration and usage habits.

With an operating voltage of DC 12-24V and total power consumption less than 15W, the YH-G8190 RFID Integrated Distance Reader is energy-efficient and suitable for long-term continuous operation. It features strong environmental adaptability, with an operating temperature range of -20°C to +65°C, storage temperature range of -40°C to +85°C, and operating humidity of 5%RH ~ 95%RH (non-condensing), ensuring stable operation in harsh industrial environments.

3. Installation & Application of YH-G8190 RFID Integrated Distance Reader

The YH-G8190 RFID Integrated Distance Reader features a user-friendly integrated design, making installation quick and convenient, and it can be easily adapted to various indoor and outdoor environments. Whether wall-mounted, pole-mounted, or fixed on equipment, the deployment can be completed in a short time without professional technical support.

Common applicable scenarios for the YH-G8190 RFID Integrated Distance Reader include warehouse inventory management, vehicle and personnel access control, production line automated identification, and other most RFID usage scenarios. It is widely used in logistics warehousing, factory automation, access control systems, asset tracking, and other fields, providing efficient and accurate RFID identification solutions for various industries.

4. Why Choose YH-G8190 RFID Integrated Distance Reader

Compared with ordinary split RFID readers, the YH-G8190 RFID Integrated Distance Reader integrates the antenna, reader module, and communication unit into one compact device, reducing installation complexity and failure points. Its long reading range, rich interface options, and multi-mode operation make it a versatile and cost-effective choice for most RFID projects.

For more RFID solutions, check out our full range of industrial RFID tags and readers, including our popular YH-D8072 RFID Location Tag. To learn more about UHF RFID standards, you can refer to the official ISO International Organization for Standardization guide.
