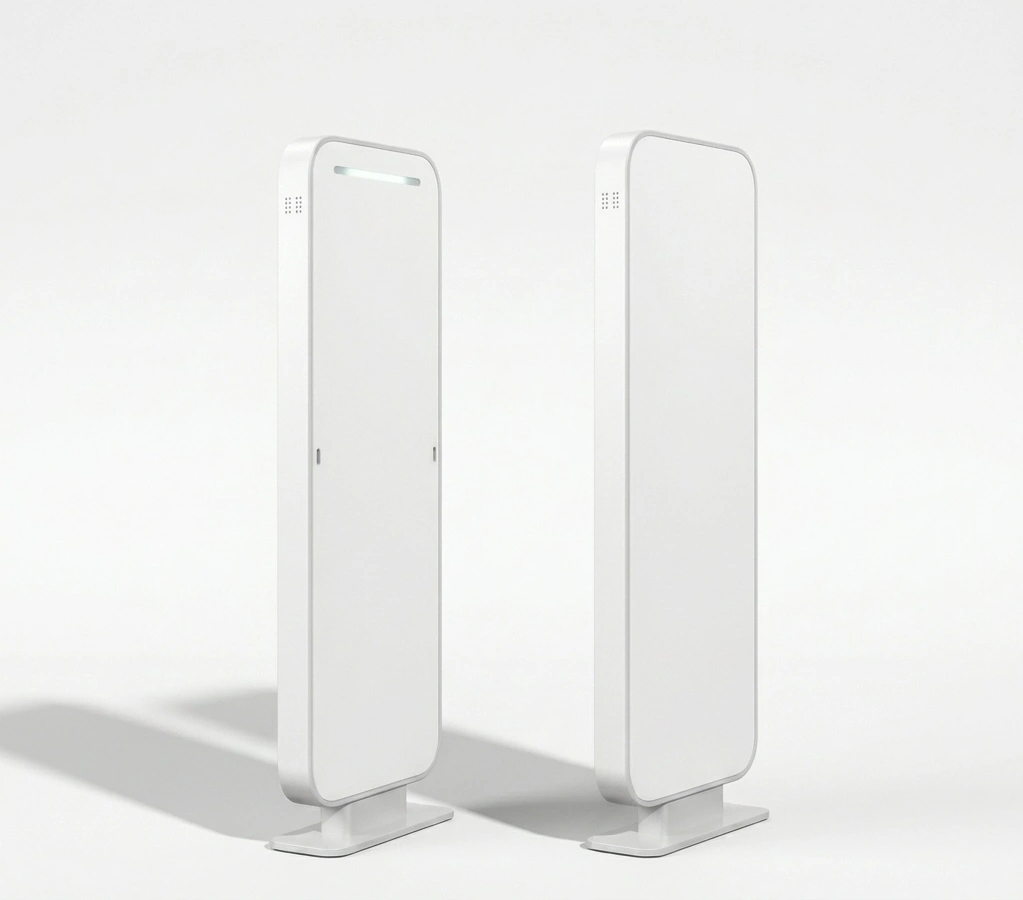

YH-D15 RFID Door

Product Model: YH-D15
Overall Dimensions: 1495mm×450mm×180mm
Screen: 10.1-inch capacitive touch screen (Optional)
Resolution: 1366×788
Communication Interface: Network port; expandable with WiFi, 4G
Operating System: Windows/Android (optional)
Memory: 2G + 8G
RF Performance: Supports multi-tag identification and multiple tag data filtering methods
Reading Distance: 0-2.5m (adjustable by power)
Alarm Method: Sound and light alarm
Alarm Trigger Mode: EAS trigger / Whitelist trigger
Installation Method: No slotting required; equipped with 1.5m stainless steel wire slot and expansion screws
RF Protocol Standard: ISO18000-6C (EPC C1G2), 840MHz-960MHz
Operating Temperature: 0~60℃
Operating Humidity: 10%RH~90%RH
Software Services: Customizable to support message upload via protocols such as Http, WebSocket, MQTT
