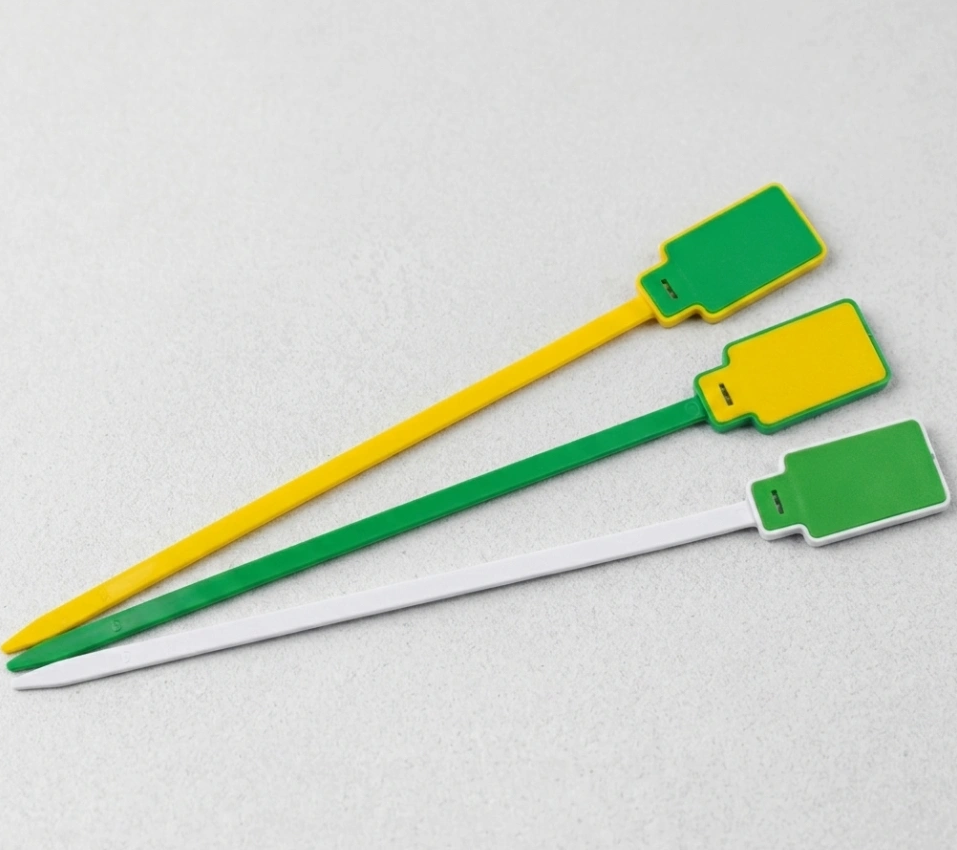

YH-Z5330 RFID Slitting Tape Label - Image 1
Click to enlarge

YH-Z5330 RFID Slitting Tape Label

Product Name: YH-Z5330
Material: Nylon / ABS Encapsulation

Tag Dimension: 53.5303.1mm

Tie Dimension: 277.57.61.9mm

Others: Tensile force 430-460N, Locking force 210-215N

Manufacturer / Chip: Customizable

Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2

Memory Capacity: 96bits / 128bits

Applicable Carrier Frequency: 860~960MHz

Service Life: Read cycles＞100,000 times; data retention for 10 years

Reading Distance: 4m

Operating Temperature: -20℃ ~ +85℃

Application Scenarios: Pallet / container tracking, food traceability, special-shaped goods, cable and pipeline identification, etc.

RELATED PRODUCTS

YH-D15 RFID Door

Read more
Product Model: YH-D15
Overall Dimensions: 1495mm×450mm×180mm
Screen: 10.1-inch capacitive touch screen (Optional)
Resolution: 1366×788
Communication Interface: Network port; expandable with WiFi, 4G
Operating System: Windows/Android (optional)
Memory: 2G + 8G
RF Performance: Supports multi-tag identification and multiple tag data filtering methods
Reading Distance: 0-2.5m (adjustable by power)
Alarm Method: Sound and light alarm
Alarm Trigger Mode: EAS trigger / Whitelist trigger
Installation Method: No slotting required; equipped with 1.5m stainless steel wire slot and expansion screws
RF Protocol Standard: ISO18000-6C (EPC C1G2), 840MHz-960MHz
Operating Temperature: 0~60℃
Operating Humidity: 10%RH~90%RH
Software Services: Customizable to support message upload via protocols such as Http, WebSocket, MQTT

YH-G185 RFID USB Desktop Card Issuer

Read more
Product Model: YH-G185
Overall Dimensions: 1428520mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna Gain: 3dBi
Output Power: 0~18dBm
Data Interface: 1 channel; 2 channels of USB to serial port; simulated keyboard function
Power Supply: USB powered
Peak Current: 60mA
Reading Distance: 0~80cm
Writing Distance: 0~15cm
Read/Write Mode: Single read/write, Continuous read/write
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Product Weight: 132g
Software & Services:
Provides development packages and demos in multiple programming languages (C++, C#, Java).
Professional batch card writing tool is provided free of charge, supporting multiple data sources, barcode scanning and Excel import with automatic generation function.
Supports encrypted writing.

YH-G3700 RFID Checkout Counter

Read more
Product Model: YH-G3700
Overall Dimensions: 37028024mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Output Power: 0~30dBm
Data Interface: RJ45, RS232, USB Type-C
Reading Distance: 0~1m, adjustable
Ingress Protection Rating: IP65
Operating Temperature: -20°C ~ +65°C
Storage Temperature: -30°C ~ +85°C
Storage Humidity: 5%~95%RH, non-condensing
Weight: 3kg
Applicable Scenarios: Library & file management, jewelry inventory counting, pharmaceutical management, retail counter settlement, etc.
Software Support: Provides C, C#, Java development kits and Demo programs; offers source code for secondary development.

YH-G9540 RFID Industrial Reader

Read more

Product Model: YH-G9540

Overall Dimensions: 95*95*40mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna: 40*40mm dual-feed point ceramic antenna
Antenna Gain: 3dBi
Output Power: 0~18dBm
Data Interface: RS232, TCP/IP, MODBUS RTU (TCP/IP),
Profinet TCP/IP, CAN Bus 2.0 (Optional)
Power Supply: Industrial wide voltage design, DC 9-36V
Reading Distance: 0~2m adjustable
Ingress Protection: IP65
Industrial Lightning Protection: 6000V high voltage lightning protection
Operating Temperature: -30°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Storage Humidity: 5%~95%RH, non-condensing

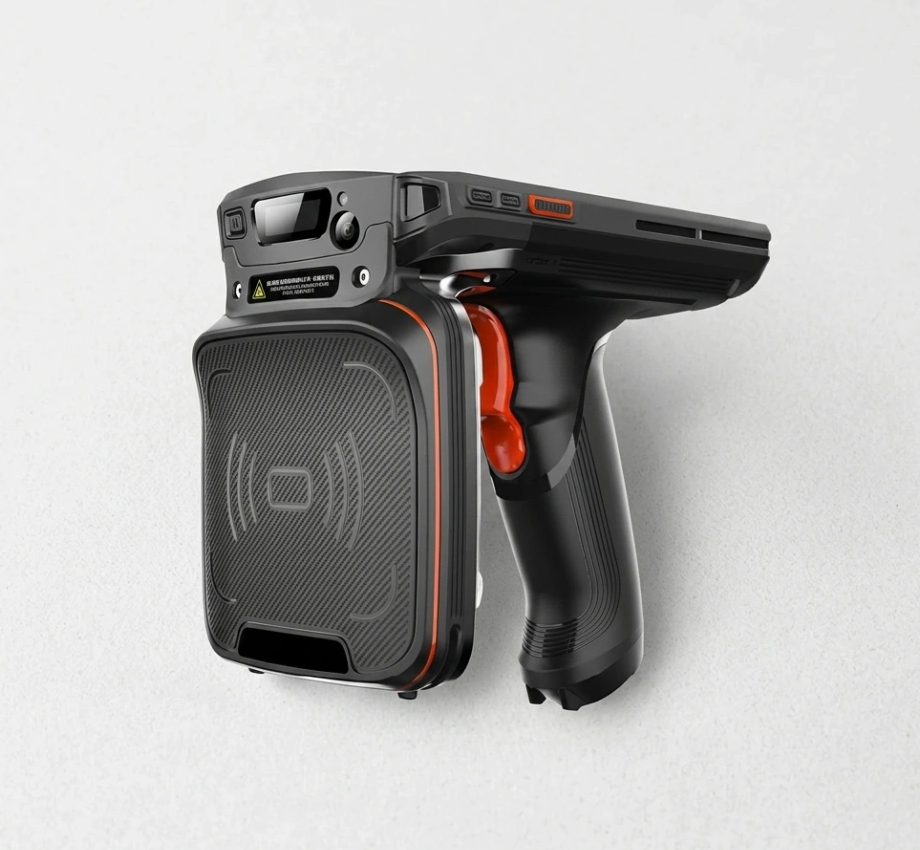

YH-T50 RFID handheld Reader

Read more
Model: YH-T50
Operating System: Android 11.0
Processor: Octa-core 64-bit, 2.45 GHz
Memory: RAM + ROM: 4GB + 64GB
Expandable Memory: Micro SD card, support up to 256GB
Overall Dimensions: 143.3mm × 169mm × 90.5mm
Display: 5.7-inch full-color full-screen
Battery Capacity: 3.85V 9000mAh rechargeable lithium battery
Audio: 1.5W speaker, noise-canceling microphone, earpiece
Physical Keys: Volume up/down key, power key, 1 customizable key, 2 scan keys
Camera: Front 5MP camera; top-mounted 13MP camera with flash support
Sensors: Proximity sensor, ambient light sensor, accelerometer, geomagnetic sensor, gyroscope
Scanning: Professional scanning engine, supports mainstream 1D & 2D barcode scanning, screen barcode scanning
Wireless WAN: Dual-card dual-standby; 4G / 3G / 2G full network access
Bluetooth: BT5.0 + BR/EDR + BLE
Wi-Fi: 2.4G/5G dual-band, IEEE standard
Positioning: Supports GPS, A-GPS, Beidou, GLONASS, Galileo
Operating Temperature: -20℃ ~ +60℃
Storage Temperature: -40℃ ~ +70℃
Humidity: 5%RH ~ 95%RH (non-condensing)
Drop & Shock Resistance: Withstands multiple drops from 1.2 meters onto smooth cement ground
Ingress Protection: IP67
ESD Protection: Air discharge ±15KV, contact discharge ±8KV
