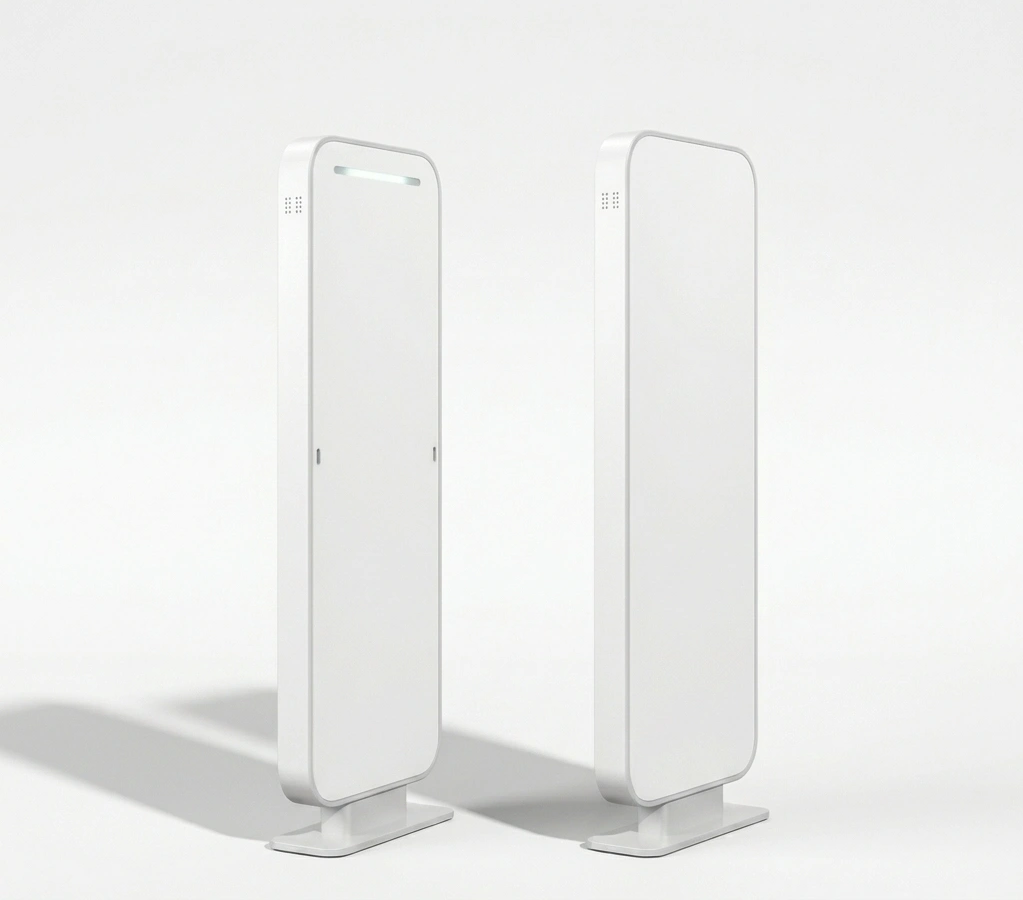

YH-D15 RFID Door
Product Model: YH-D15
Overall Dimensions: 1495mm×450mm×180mm
Screen: 10.1-inch capacitive touch screen (Optional)
Resolution: 1366×788
Communication Interface: Network port; expandable with WiFi, 4G
Operating System: Windows/Android (optional)
Memory: 2G + 8G
RF Performance: Supports multi-tag identification and multiple tag data filtering methods
Reading Distance: 0-2.5m (adjustable by power)
Alarm Method: Sound and light alarm
Alarm Trigger Mode: EAS trigger / Whitelist trigger
Installation Method: No slotting required; equipped with 1.5m stainless steel wire slot and expansion screws
RF Protocol Standard: ISO18000-6C (EPC C1G2), 840MHz-960MHz
Operating Temperature: 0~60℃
Operating Humidity: 10%RH~90%RH
Software Services: Customizable to support message upload via protocols such as Http, WebSocket, MQTT
Product Introduction
The YH-D15 RFID Channel Access Control strictly complies with the ISO18000-6C (EPC C1G2) protocol standard. With a simple, elegant and high-quality design, it features stable performance and reliable quality. It supports efficient multi-tag parallel reading and adopts an infrared-triggered reading mode, commonly used to control the entry and exit of personnel and products. Integrated with integrated sound and light alarm, it supports online/offline EAS dual-mode alarm. In terms of communication, it is equipped with a standard network port, and can be expanded with various wireless communication methods such as WiFi and 4G, adapting to diverse scenario deployment needs.
Core Features
-
Excellent multi-tag reading performance, with extremely low miss-reading and false-reading rates, ensuring stable and efficient identification.
-
Adopts a dedicated optimized antenna design, enabling precise control of the access control induction coverage area without identification blind spots.
-
Built-in high-brightness alarm indicator and buzzer, providing real-time sound and light reminders for abnormal situations.
-
Strong adaptability to the deployment spacing of RFID security gates, with a maximum channel width of 2.5 meters.
-
Supports external displays to show real-time information and quantity of passing items, facilitating visual management.
-
Provides a matching SDK, enabling quick completion of basic API development and calling within 30 minutes, with easy operation and efficient integration.
-
Outstanding software service capabilities, supporting in-depth customized development and flexible adaptation to diversified industry applications such as asset management and warehouse management.
