YH-G185 RFID USB Desktop Card Issuer - Image 1
Click to enlarge

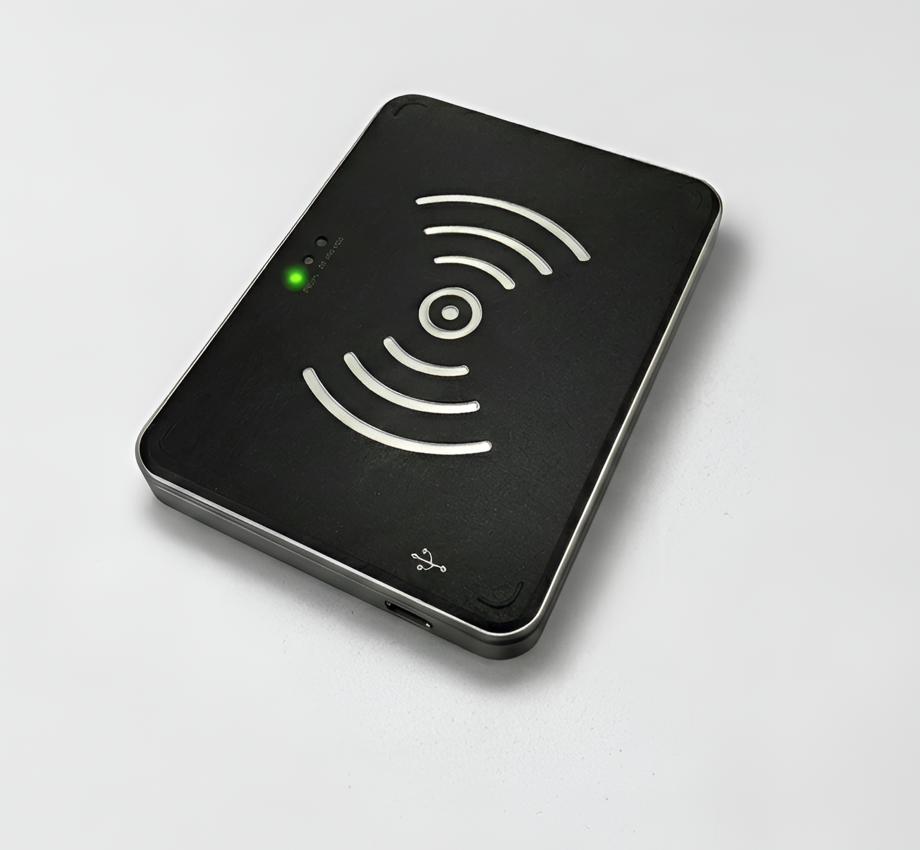

YH-G185 RFID USB Desktop Card Issuer

Product Model: YH-G185

Overall Dimensions: 1428520mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna Gain: 3dBi
Output Power: 0~18dBm
Data Interface: 1 channel; 2 channels of USB to serial port; simulated keyboard function
Power Supply: USB powered
Peak Current: 60mA
Reading Distance: 0~80cm
Writing Distance: 0~15cm
Read/Write Mode: Single read/write, Continuous read/write
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Product Weight: 132g
Software & Services:

Provides development packages and demos in multiple programming languages (C++, C#, Java).

Professional batch card writing tool is provided free of charge, supporting multiple data sources, barcode scanning and Excel import with automatic generation function.

Supports encrypted writing.
