YH-G9540 RFID Industrial Reader - Image 1
Click to enlarge

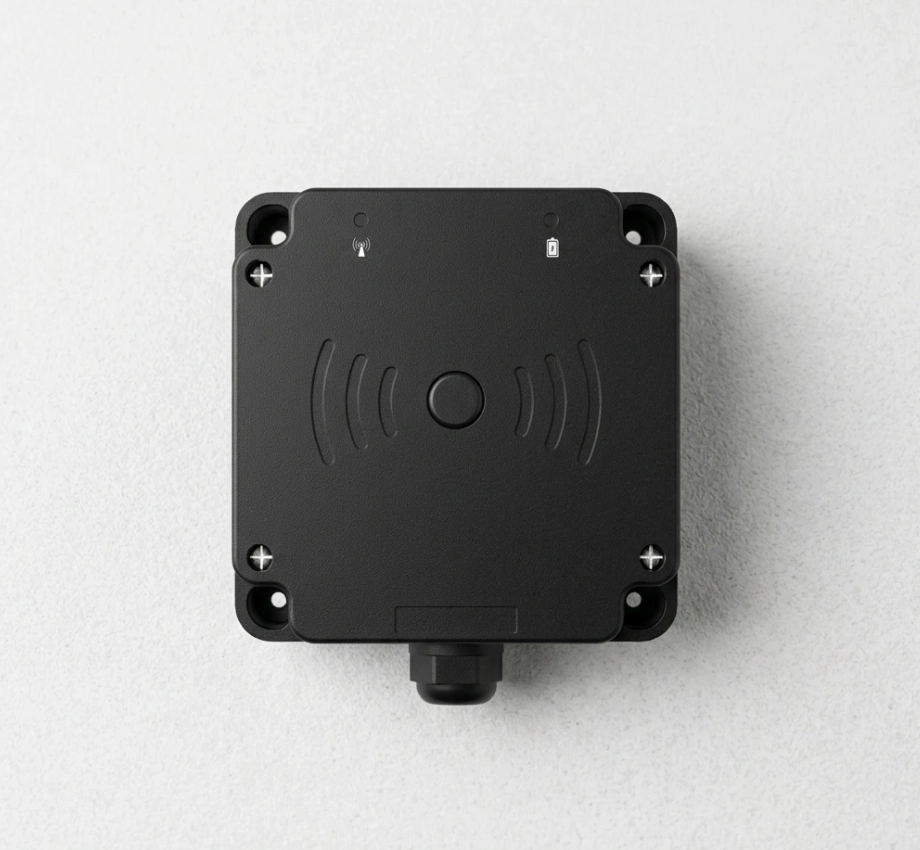

YH-G9540 RFID Industrial Reader

Product Model: YH-G9540

Overall Dimensions: 95*95*40mm
RF Protocol: EPC C1 Gen2, ISO18000-6C
Operating Frequency: 902-928MHz (US), 865-868MHz (EU)
Antenna: 40*40mm dual-feed point ceramic antenna
Antenna Gain: 3dBi
Output Power: 0~18dBm

Data Interface: RS232, TCP/IP, MODBUS RTU (TCP/IP),

Profinet TCP/IP, CAN Bus 2.0 (Optional)

Power Supply: Industrial wide voltage design, DC 9-36V
Reading Distance: 0~2m adjustable
Ingress Protection: IP65
Industrial Lightning Protection: 6000V high voltage lightning protection
Operating Temperature: -30°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Storage Humidity: 5%~95%RH, non-condensing
