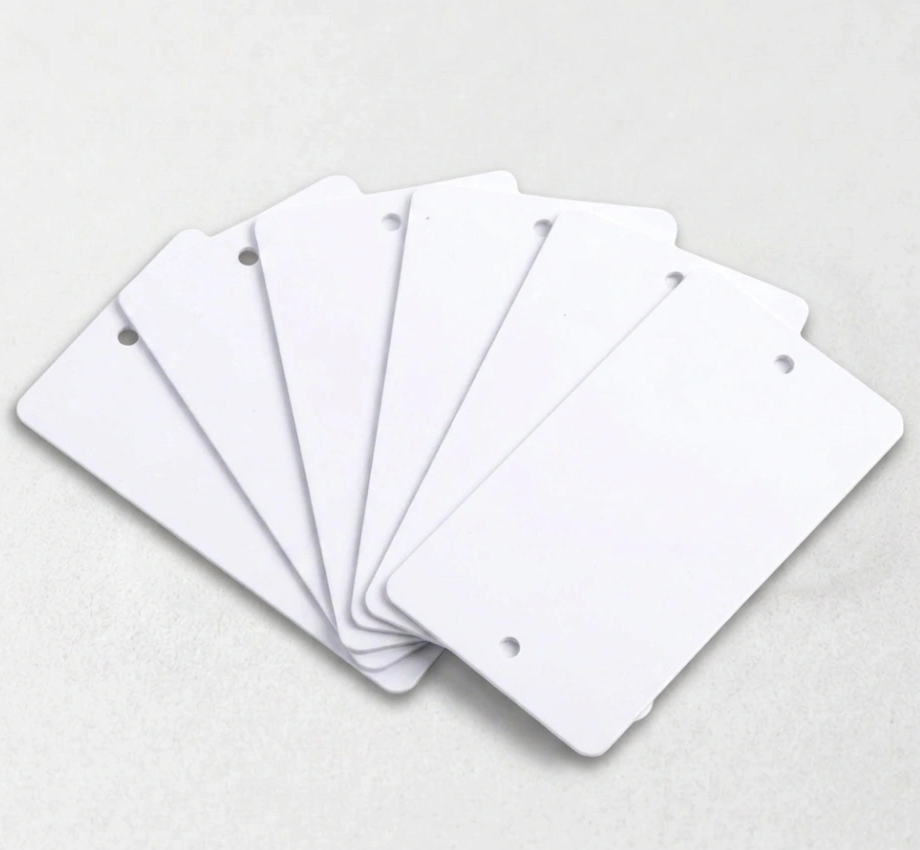

YH-B9033 RFID Blank Card Tag

Product Name: YH-B9033 White Card Tag

Material: PVC / PET

Dimensions: 90331mm

Manufacturer / Chip: Alien / Higgs3

Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2

Memory Capacity: EPC area 96 bits, User area 128 bits

Applicable Carrier Frequency: 860~960MHz

Service Life: Read cycles＞100,000 times; data retention for 10 years

Reading Distance: 6m on metal surface

Operating Temperature: -20°C ~ +70°C

Installation Method: 3M adhesive backing or screw holes

Application Scenarios: Metal instruments, mechanical equipment, warehouse shelves, various metal accessories, etc.

RELATED PRODUCTS

YH-6025 RFID Anti-Metal Tag

Read more
Product Model: YH-6025 Material: FR-4 Dimensions: 60251.5mm Manufacturer / Chip: Impinj M4QT / Alien H3 Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2 Memory Capacity: EPC area 96 bits, User area 128 bits Applicable Carrier Frequency: 860~960MHz Service Life: Read cycles over 100,000 times; data retention for 10 years Reading Distance: 6m on metal surface Operating Temperature: -40℃ ~ +180℃ Installation Method: 3M adhesive backing or screw holes Application Scenarios: Metal instruments, mechanical equipment, warehouse shelves, various metal accessories, etc.

YH-D8072 RFID Location Tag

Read more

Product Model: YH-D8072

Overall Dimensions: Radius 40mm × Thickness 5mm
Material: Polyurethane Resin
Chip: Customizable
Memory: EPC 96/128 bits, User Area 32 bits
Write Cycles: More than 100,000 times
Installation Method: Screw mounting, adhesive backing, riveting
Weight: 25g
Ingress Protection Rating: IP68
Operating Temperature: -40℃ ~ +100℃
Storage Temperature: -40℃ ~ +80℃
Other Features: Wear-resistant, anti-aging, capable of withstanding heavy lamination at normal temperature
Pressure Resistance: 3 tons
Application Scenarios: Dedicated for geographic location identification; such as warehouse location management, road surface marking, etc.
Data Retention: 50 years

YH-I442 Inlay

Read more
Product Name: YH-I47 Wet Inlay Material: PET Dimensions: 44*44mm Manufacturer / Chip: IMPINJ / Monza4D / 4E / 4QT Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2 Memory Capacity: EPC 96/128 bit, User 128/512 bit Applicable Carrier Frequency: 860~960MHz, Passive Service Life: Read cycles over 100,000 times; data retention for 10 years Reading Distance: 15m Application Scenarios: Apparel, retail, asset management, logistics, etc. Features: Long reading distance and fast identification speed, suitable for application scenarios requiring rapid mass tag reading

YH-I96523 RFID Flexible Tag

Read more
Product Model: YH-I96523 Material: PVC with self-adhesive backing, pasteable Dimensions: 96.5*23mm Manufacturer / Chip: Alien / Higgs3 Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2 Memory Capacity: EPC 12 bytes, User 64 bytes Applicable Carrier Frequency: 860~960MHz Service Life: Over 100,000 read cycles; data retention for 10 years Reading Distance: 15m Application Scenarios: Apparel, libraries, warehouses and other environments

YH-SX7015 RFID Laundry Tag

Read more
Product Model: YH-SX7015 Material: Textile fabric / Silicone / PPS Dimensions: 70*15mm Manufacturer / Chip: U8 / U9 Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2 Memory Capacity: EPC 96/128 bits Applicable Carrier Frequency: 860~960MHz Service Life: Read cycles over 100,000 times; data retention for 10 years Reading Distance: 3-8m Features: Withstands high and low temperature from -40°C to 200°C; reusable washing over 300 times Application Scenarios: Garments and linens for laundry industry, medical logistics, hotels, spas and other occasions
