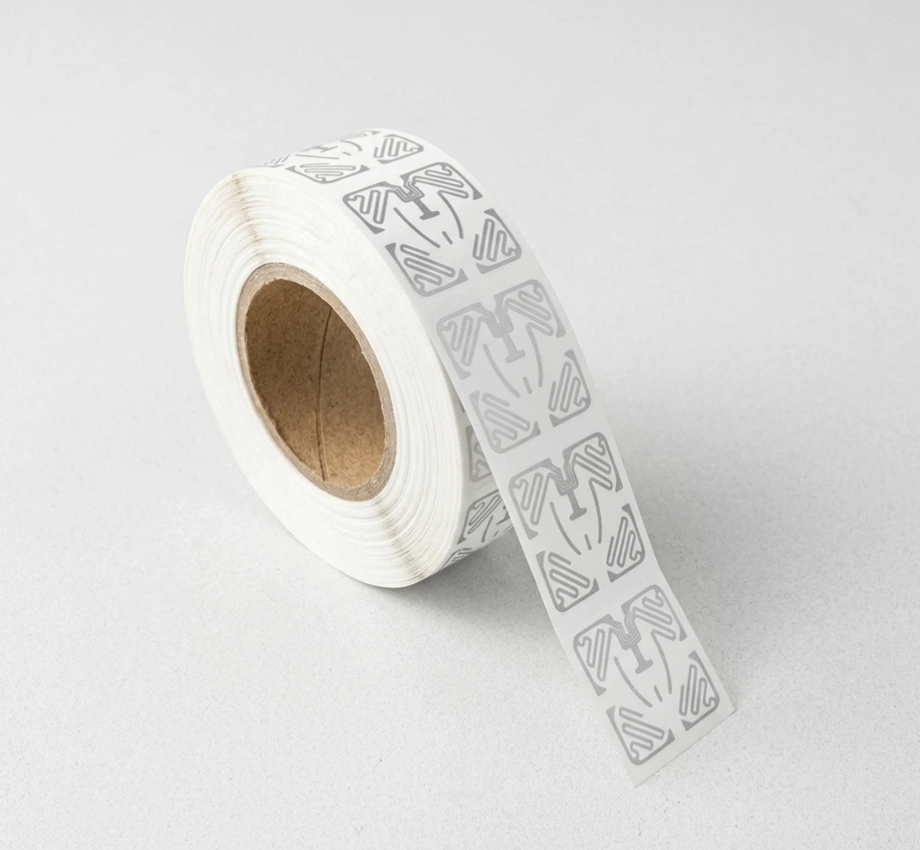

YH-I442 Inlay

Product Name: YH-I47 Wet Inlay

Material: PET

Dimensions: 44*44mm

Manufacturer / Chip: IMPINJ / Monza4D / 4E / 4QT

Compliance Standard: ISO/IEC 18000-6C, EPC Class1 Gen2

Memory Capacity: EPC 96/128 bit, User 128/512 bit

Applicable Carrier Frequency: 860~960MHz, Passive

Service Life: Read cycles over 100,000 times; data retention for 10 years

Reading Distance: 15m

Application Scenarios: Apparel, retail, asset management, logistics, etc.

Features: Long reading distance and fast identification speed, suitable for application scenarios requiring rapid mass tag reading

RELATED PRODUCTS

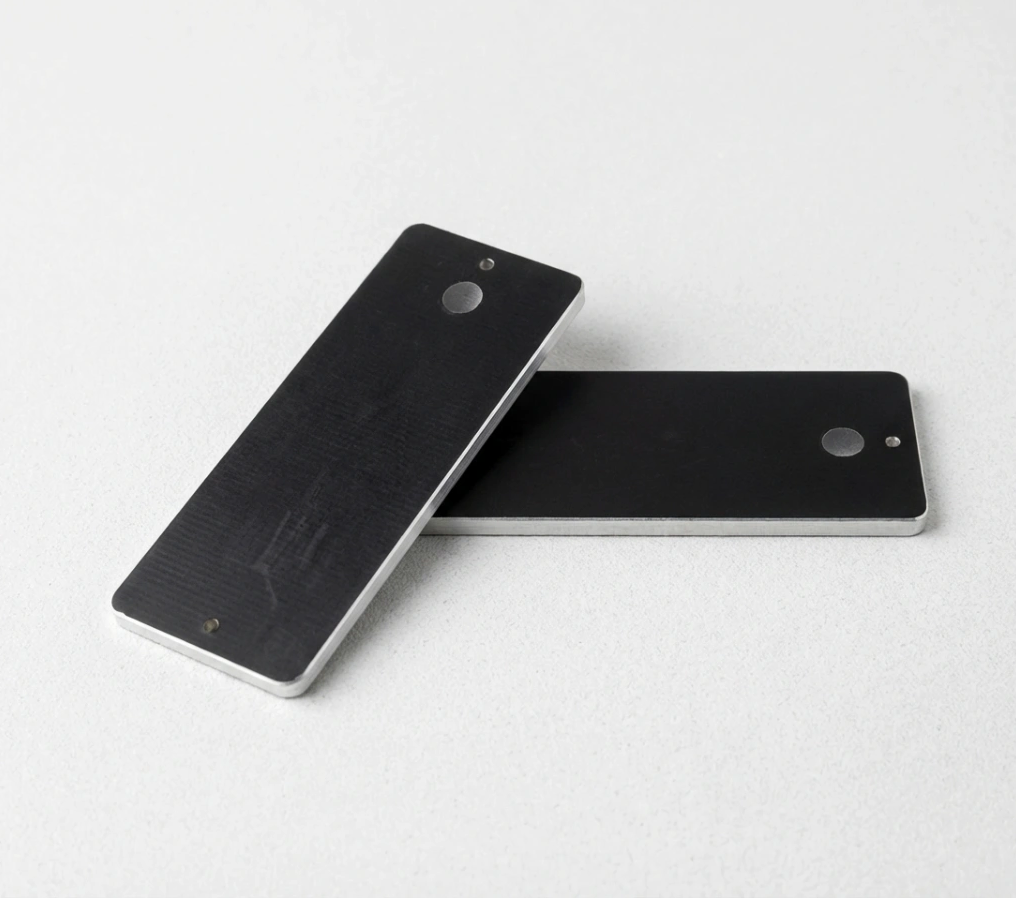

YH-6025 RFID Anti-Metal Tag
