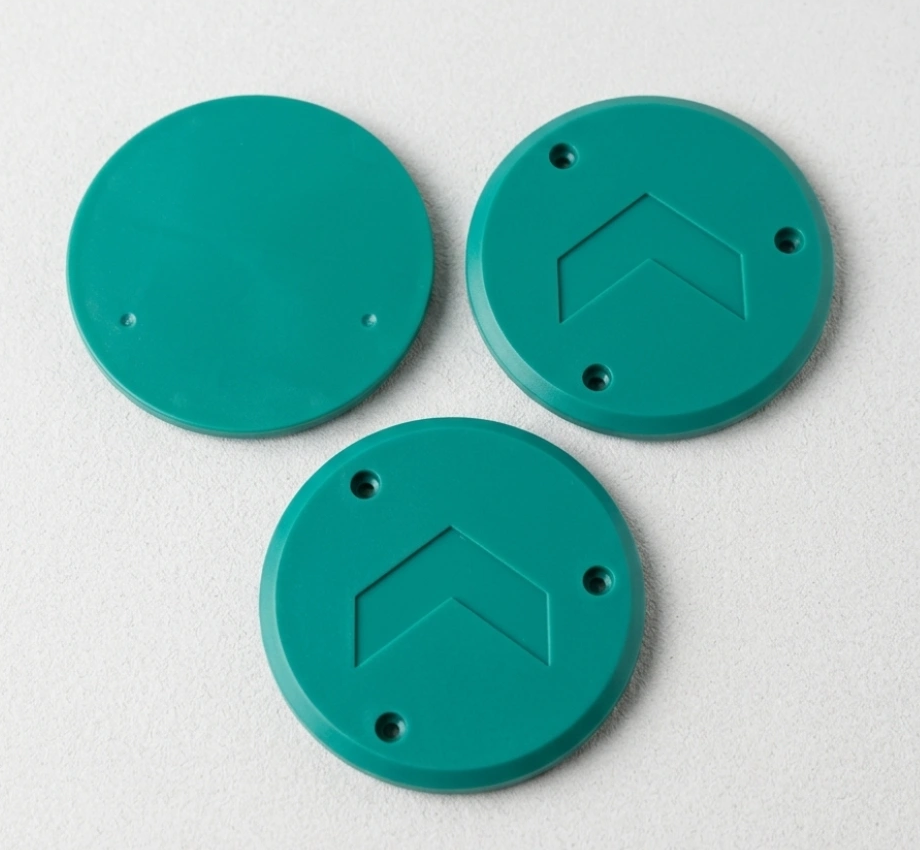

YH-D8072 RFID Location Tag - Image 1
Click to enlarge

YH-D8072 RFID Location Tag

Product Model: YH-D8072

Overall Dimensions: Radius 40mm × Thickness 5mm
Material: Polyurethane Resin
Chip: Customizable
Memory: EPC 96/128 bits, User Area 32 bits
Write Cycles: More than 100,000 times
Installation Method: Screw mounting, adhesive backing, riveting
Weight: 25g
Ingress Protection Rating: IP68
Operating Temperature: -40℃ ~ +100℃
Storage Temperature: -40℃ ~ +80℃
Other Features: Wear-resistant, anti-aging, capable of withstanding heavy lamination at normal temperature
Pressure Resistance: 3 tons
Application Scenarios: Dedicated for geographic location identification; such as warehouse location management, road surface marking, etc.
Data Retention: 50 years
